It seemed all too fitting that author copies of my new book, The Evolution Underground: Burrows, Bunkers, and the Marvelous Subterranean World Beneath Our Feet(Pegasus Books, 2017) arrived on February 2. In the U.S., this is Groundhog Day, which is named after a burrowing animal and one in which its burrow plays a key role in its mythology. Did it cast a shadow or otherwise predict the weather for the next six weeks? No, but it may enlighten as you travel through geologic time, learning all about how animals and their burrows altered the world, and how animals used burrows to survive the worst the earth (or solar system) could toss at them.
It’s here! After about two years from start to end, The Evolution Underground is out of its literary bunker and into your hands. (Photo by Anthony Martin.)
Is a book about burrows and burrowing animals too far beneath you to read? Well, as the immortal Kenny Loggins might say: Do what you like, and do it naturally.
The Evolution Underground is my seventh book and the second written overtly for a popular-science audience, following Dinosaurs Without Bones: Revealing Dinosaur Lives through Their Trace Fossils (2014, also by Pegasus Books). Dinosaurs Without Bones was a successful debut for me as a popular writer, with not-bad sales and mostly positive reviews (such as this, this, and this). That book was also my first attempt to make the word “ichnology” (the study of traces) more mainstream, and by using those always-charismatic dinosaurs as a hook. It worked, and I now think the percentage of people confusing ichnology with ichthyology has gone down ever so slightly since that book came out.
It’s ichnology, not ichthyology. Make sure you get it right, because you do not want to be slapped by Batman.
For fans of Dinosaurs Without Bones, I’m happy to report my new book – which is officially published today, February 7, 2017 – includes dinosaurs and it’s about ichnology. But it also includes plenty of paleontology, geology, ecology, and good, old-fashioned natural history throughout. Moreover, this book gave me a chance to introduce readers to a panoply of animals representing the past 550 million years of earth history, while also exploring the big idea that burrowing impacted the evolution of many animals and their ecosystems.
What’s it like to be a gopher tortoise? Kind of like being a subterranean landlord, considering that you might be sharing your burrow with 300-400 other species of animals.(Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
Along those lines, main themes of the book are expressed in subtitles I considered for it: How Burrows Changed the World and Better Surviving through Burrows. For the former, the mere collective action of burrowing animals – from the deep seafloor to mountaintops – is an essential part of how most ecosystems function. For the latter, burrows were all-natural bunkers enabling animals to escape the worst the Earth (or solar system) could throw at them and allowing their evolution to continue underground. Want to survive a mass extinction? Start digging.
Lungfishes since the Devonian Period (more than 350 million years ago) have burrowed to avoid droughts, and their lineage has survived four mass extinctions. Coincidence? Probably not. (Original illustration by Anthony Martin, in The Evolution Underground (2017).)
Must you buy this book, or at least persuade your local public library to get it? Well, yes, if you insist. Still, just in case you first need to know a bit more about the burrowing animals and geologic times represented in between its front and back covers, here’s a chapter list with brief descriptions of their contents. Thanks in advance, and I hope you and other readers enjoy reading it.
The Evolution Underground: Chapter Titles and Synopses
Chapter 1: The Wondrous World of Burrows – Did you know that alligators make burrows? They do indeed, and they’re awesome burrows. Learn how these body-armored saurians straight out of central casting from the Mesozoic Era provide superb living examples of how many animals use (or used) burrows to survive and thrive, thus symbolizing many of the main themes of the book.
Chapter 2: Beyond “Cavemen”: A Brief History of Humans Underground – Since the time of living in caves, humans have gone beneath the Earth’s surface during times of environmental or societal stress, and we still do. In this chapter, travel to Turkey, China, Russia, Australia, Canada, and the far-off exotic land of Pennsylvania (home of weather-predicting groundhogs) to marvel at how humans, time and time again, have looked below when seeking safety.
One of these is a map of a naked mole rat burrow system, and the other is of an underground city made by humans in central Turkey. Which is which? That might be one of many questions answered by reading my new book. (Original illustration by Anthony Martin, in The Evolution Underground.)
Chapter 3: Kaleidoscopes of Dug-Out Diversity – Gopher tortoises of the southeastern U.S. dig burrows that are both deep and meaningful, as these burrows host underground menageries of many other species, boosting the biodiversity of their ecosystems. How did tortoises and other turtles evolve and survive mass extinctions of the past? If you answered “burrowing,” you’re catching on to what this book is about.
Chapter 4: Hadean Dinosaurs and Birds Underfoot – Although burrowing dinosaurs of the Mesozoic past were apparently rare, a few of their living descendants (birds) evolved to put their nests not in trees, but underground. In this chapter, penguins, puffins, shearwaters, owls, kiwis, bee-eaters, and other birds raising underground families are lauded for their digging family values.
Chapter 5: Bomb Shelters of the Phanerozoic – This chapter opens with a piece of fiction about a Lystrosaurus (or two) embarking on a post-apocalyptic journey. This allegory conveys how burrowing helped their kind and a few other animals to survive the worst mass extinction in the history of life at the end of the Permian Period (about 250 million years ago). This chapter also summarizes other mass extinctions and how burrowing provided an advantage for making it through the worst ecological crises of the geologic past.
Chapter 6: Terraforming a Planet, One Hole at a Time – When did animals move from the sea to freshwater and then onto land? Burrowing may have helped animals to make transitions from such environmental extremes, which ultimately resulted in their shaping landscapes as we know them today. Featured animals in this chapter include trilobites, horseshoe crabs, lungfish, amphibians (frogs, toads, salamanders), lizards, and snakes.
Chapter 7: Playing Hide and Seek for Keeps – For a long time, all animal life was superficial, living either on seafloor surfaces or just underneath. Then about 550-540 million years ago, animals starting plumbing deeper. What caused this downward shift, and how did animals’ churning of oceanic sands and muds forever change the oceans, atmosphere, and the evolution of life? Also, the evolution of predators gave animals yet another reason to burrow: That is, before the predators started burrowing, too, starting an underground “arms race” that continues through today.
Chapter 8: Rulers of the Underworld – What animals are the real ecosystem engineers for our planet? Mostly the small and spineless ones, invertebrates. This chapter starts with those marvelous earthworms that so beguiled Charles Darwin, then pays tribute to the amazing feats of burrowing and animal architectures created by ants, crayfish, crabs, lobsters, and more.
Chapter 9: Viva La Evolución: Change Comes from Within – This chapter starts with the second fictional story in the book, following the exploits of an ecological hero – a pocket gopher – following the 1980 volcanic eruption of Mount St. Helens. The rest of the concluding chapter of The Evolution Underground looks at burrowing mammals (especially rodents), but also considers the largest burrowing animals of all time. Also, what can we as mammals learn from our fellow furry underground relatives as we head into an uncertain future posed by rapid climate change?
Appendix: Genera and Species Mentioned in The Evolution Underground – A listing of the animals name-dropped in the book, some of which may surprise you.
What are you waiting for? Leave your underground hidey-hole and get my book! P.S. Thanks for reading it. (Photograph by Anthony Martin, taken in Decatur, Georgia.)
With the start of a new academic year, many university professors might be deliberating on what they’ll be teaching, and many students similarly (and hopefully) might be wondering what they will be taught. For me this academic year, my plan is not to put so much emphasis on the “what,” but more on the “how,” and put it in the form of a basic question: How could I be wrong?
In my experience, this is a question we professors and other educators we often ask, regardless of whether we are in the natural sciences, social sciences, humanities, or some blend of those educational realms. Now, this is not to say that we should continuously live our lives in doubt of our hard-earned skills and knowledge, succumbing to imposter syndrome. So what I will suggest is that we use it in our teaching, leading by example for our students. For instance, when my students see me question an initial interpretation of mine, correct that wrong interpretation, and show delight when this happens, then they will feel more comfortable asking themselves the same question, too.
So how do I apply this method to my research disciplines of paleontology and ichnology? If I am observing a natural phenomenon in the field, museum, or other settings, and I find myself jumping to a conclusion too rapidly, I take a moment to pause, back up, and try to disprove that hasty conclusion. Sometimes it turns out that, yes indeed, I was an idiot. But if this debunking process fails to find anything terribly wrong with my original explanation, or I modify it accordingly in the face of newly acquired evidence, then I’ll think this: So far, so good.
Whoa, check out the tracks made by this eight-legged river otter! This eight-legged otter must have been the result of some freak mutation, or genetic engineering, or joined twin otters, or a robot spider with otter feet…What? Was it something I said? (Scale in centimeters; Photo by Anthony Martin.)
Moreover, because so much of paleontology and ichnology involves interpreting the products of non-witnessed lives, behaviors, and environments, such as bones, shells, leaves, tracks, and burrows, careful documentation of this evidence is key for making reasonable interpretations. Because we can’t prove ourselves wrong by watching a video of whatever happened in the pre-human past, we also have to ensure that the evidence can be shared and evaluated by other paleontologists and ichnologists.
In the following video, I explain these two basic scientific principles – how could I be wrong, and so far, so good – by using a few examples from a forested area next to the Emory University campus in Atlanta, Georgia. This is the place where I often teach first-year (freshman) students in a small-class seminar how to track the animals on and around our campus. Because most of these animals are nocturnal, most remain “invisible” to the students’ during their four years on campus. So my students really do learn how to use trace evidence to make reasonable hypotheses about animal presence and behaviors, and by the end of the semester, they get pretty good at it.
This sort of educational fruition is what made for the most fun part about doing this video, which was having a former student of mine who took the class four years ago play the role of my willing and eager “student.” In this, we demonstrated how the two basic principles – how could I be wrong, and so far, so good – are applied when in the field. It actually wasn’t much of a stretch for my former student, as Dorothy (Dottie) Stearns (Emory College ’16) was one of my best students in the class when she took it, and she really enjoys getting outside and tracking, so her enthusiasm is genuine.
The video is part of a series that Emory is producing on the theme of Evidence at Emory, with professors from a wide variety of disciplines explaining how they incorporate evidence-based reasoning in their courses. First-year students at Emory are the specific target of the videos so they are exposed to different disciplines and how scholars evaluate evidence in those disciplines. But there’s also hope that students will retain these discernment skills in life after college. Nonetheless, I think anyone who likes observing and thinking about what they observed can benefit from watching them. I could be wrong on that, but if not, I’m fine with that, too: for now.
Wait a minute, you’re saying these tracks could have been made by two otters, with one following closely behind the other? Huh, hadn’t thought of that. But that doesn’t mean eight-legged otters aren’t out there somewhere. Or freak mutated otters. Or genetically engineered otters. Or a robot spider with otter feet. What? Was it something I said?
Acknowledgements: Thanks to the Quality Enchancement Plan of Emory University for encouraging me to more overtly incorporate evidence as a main theme in my class, to Dottie Stearns for being such an awesome student/actor, and to the Center for Digital Scholarship, also of Emory University, for their fine work on the video production.
The first time Tom Rich and Patricia (Pat) Vickers-Rich visited Knowledge Creek was also their last. Their sojourn that day – December 18, 1980 – had been motivated by a renewed sense of exploration and scientific discovery on the coast of Victoria, Australia. But they also had no idea that a little footprint left by a dinosaur 105 million years before them there would soon become a part of their paleontological legacy.
Two of the first known dinosaur tracks, found in Victoria, Australia in the 1980s, but described for the first time this year. (Scale in centimeters; photo by Anthony Martin.)
Just two years before Tom and Pat’s trip to Knowledge Creek, a couple of students of theirs at the time, John Long and Tim Flannery, along with geologist Rob Glennie, discovered bits and pieces of dinosaur bones in rocks from the Early Cretaceous (120-105 million years ago) of coastal Victoria, Australia. Because these were the first dinosaur remains found in that region of Australia since 1903, the husband-wife paleontologist team decided they might prospect for more bones in other places with Early Cretaceous rocks. This was a daunting task, considering the lengthy and imposing coastal outcrops both west and east of the big city of Melbourne, Victoria, but they were up for the challenge.
A rare portrait of these two Australian paleontologists – Tom Rich and Pat Vickers-Rich – in which they are not a blur of discovering, publishing, and educating. (Photo by Anthony Martin, taken in 2010.)
Knowledge Creek was one of many spots on their map of coastal outcrops that had not been properly vetted for their fossils. It was named after a modest drainage that cut across the Cretaceous rocks in the Otway Ranges and located about 2.5 hours drive west of where Tom and Pat lived in Melbourne. So off they went to assess it, a decision they soon regretted.

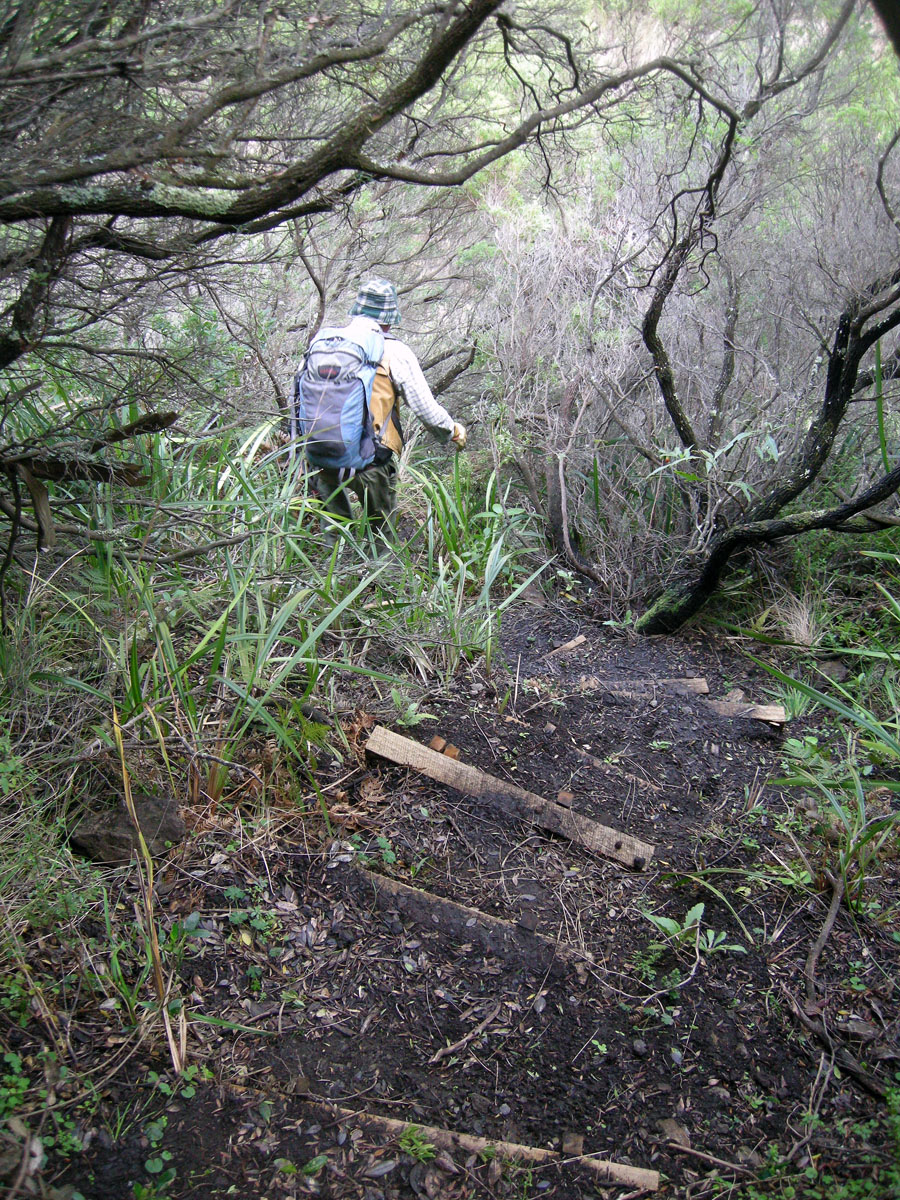

Need to find the way to the outcrop at Knowledge Creek? Just take a wallaby trail partway down, look for the somewhat-human trail, take a right, then a left, and keep going downhill until you find the creek with the leeches. How do you get back up? No bloody idea, mate. (Photo by Anthony Martin.)
The terrain is what prompted them to soon question their sanity. To access the outcrops then (and still) required driving along an unmarked dirt road high above the cliffs, finding a wallaby trail or other such clearing through the coastal scrub forest, bushwhacking your way down a steep, muddy slope, crossing leech-infested Knowledge Creek, and then – once on the rocky marine platform, eyes down looking for fossils – not slipping on the algae-covered rocks and getting pummeled by waves. While there, they also tried not to think about the trip back up. One challenge at a time.
Here they found Victoria’s first known dinosaur track, and the first discovered in all of southern Australia. The track was exposed on the marine platform about 200 meters (660 feet) east of where Knowledge Creek flowed out and onto the rocks. It stood out clearly as a single, raised, dark-brown three-toed entity on a flat sandstone surface, with no matching companion tracks nearby.
Discovery site of the first known dinosaur track in Victoria, Australia, found by Tom Rich and Pat Vickers-Rich on December 18, 1980. The spot where they saw the track on the marine platform would have been about 100 meters to the left, where the big wave in this photo is about to smash. (Photo by Anthony Martin.)
Luckily, Tom and Pat had brought hammers and chisels with them. so where a dinosaur foot once pressed into soft sand, they added their own traces to its hardened periphery. Into a backpack the little slab went and they carried it out, their feet leaving longer and deeper prints than before as they slogged back up the slope.

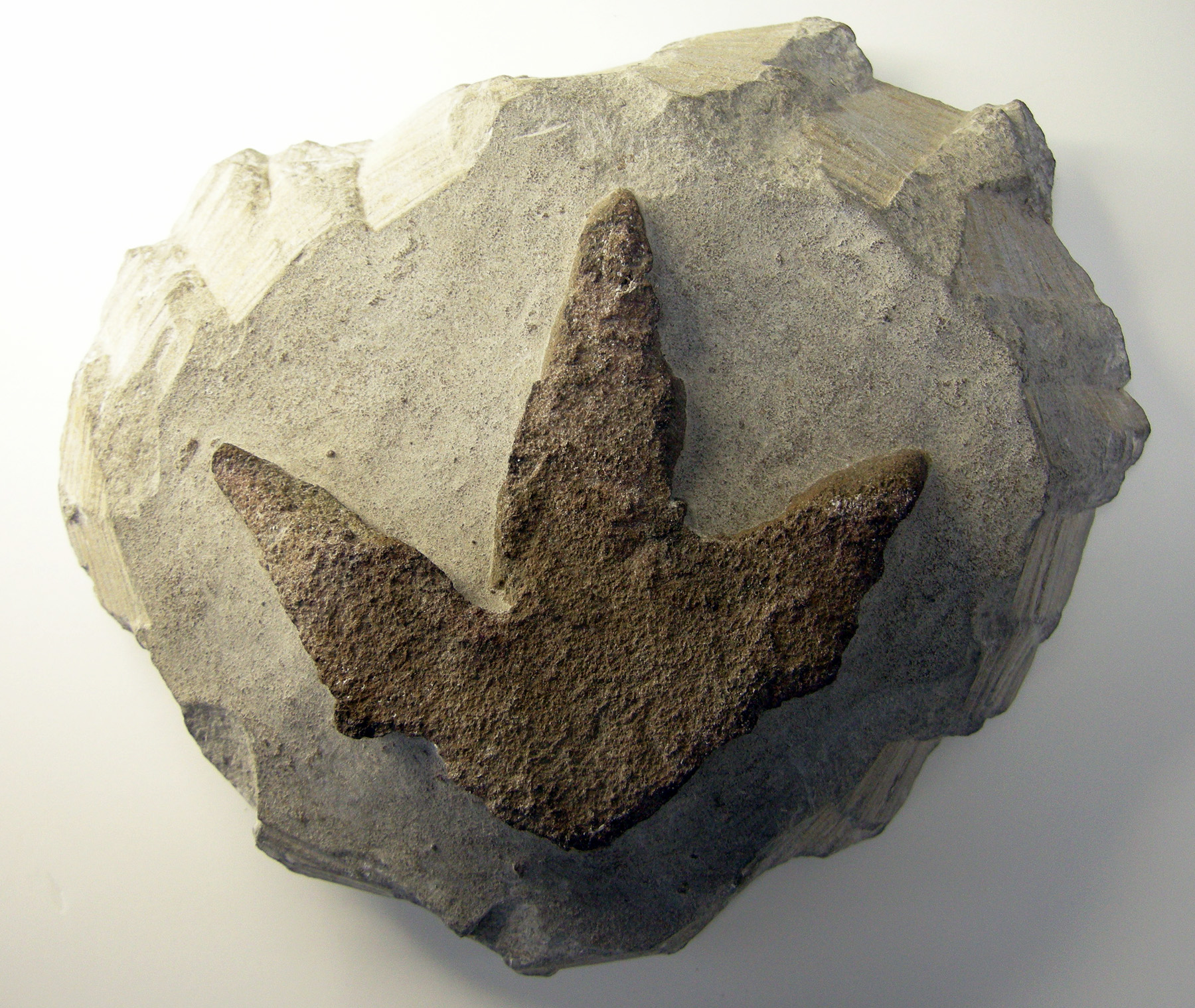

The first known dinosaur track from Victoria, Australia. It’s only about 10 cm (4 in) wide and long, and it’s all by its lonesome self, but it’s a pretty track. Also, check out those chisel traces around it, made by Tom and/or Pat Vickers-Rich. (Photo by Anthony Martin.)
They took the track to Museum Victoria, where it was assigned a specimen number and label, then put in a drawer in the paleontological collections in the basement of the old Exhibition Hall for the museum. As Victoria’s only known dinosaur track – and such a neatly defined one – it became iconic through the rest of the 1980s and afterwards. Because its shape so clearly said “dinosaur track!”, it was frequently displayed in the museum, and photos of it showed up in books and articles on the paleontology of the area. As a sign of Pat’s passion for science education and outreach, she had reproductions made of it and gave these away to local schools so Australian students could learn about Victoria’s only dinosaur track by proxy.
The old Exhibition Hall of Museum Victoria in downtown Melbourne, Australia, which houses the extensive fossil collections for the museum, including its dinosaur tracks. (Photo by Anthony Martin.)
Oddly, more than thirty years passed, and this dinosaur footprint was neither described nor diagnosed. Despite its importance, it was overshadowed by far more abundant and seemingly more exciting dinosaur bones in outcrops near Knowledge Creek. This place and its fossils were discovered by Tim Flannery, Michael Archer, and Tom Rich on December 13, 1980, and only five days before Tom and Pat descended into Knowledge Creek. Tom called it Dinosaur Cove, and thanks to its fossils and total coolness as a place name, it stuck. Here’s what he said about its origin story:
That night, needing a name for this then unnamed cove, I scribbled in my notes ‘Dinosaur Cove,’ not thinking then that it would ever have any particular significance.
Dinosaur Cove, one of the most important fossil sites in Australia and for polar dinosaurs in the Southern Hemisphere. (Photo by Anthony Martin.)

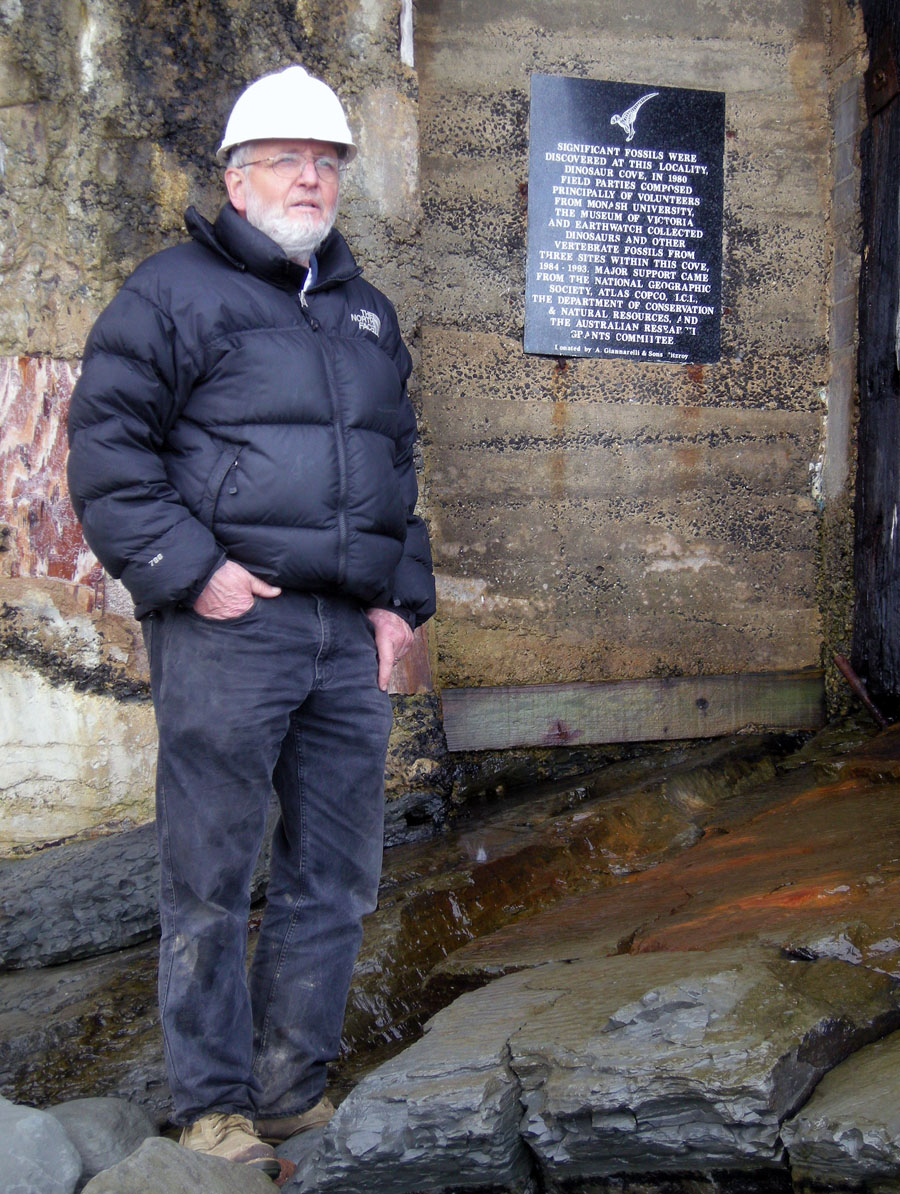

Tom Rich next to the sealed tunnel at Dinosaur Cove, where he, Pat Vickers-Rich, and many volunteers extracted many fossils during the 1980s and early 1990s. (Photo by Anthony Martin.)
Here was where this part of Australia became justifiably famous for its dinosaur fossils in the 1980s and 1990s, as Tom and Pat, along with dedicated field crews, extracted hundreds of skeletal bits and pieces of dinosaurs and many other animals that lived there. What made these remains even more important, though, was how their former owners lived near the Cretaceous South Pole, when Australia was still connected to Antarctica. This meant Tom, Pat, and their colleagues were documenting what was then one of the few known polar-dinosaur assemblages in the world. For about ten years, they and their teams also performed some of the hardest labor any dinosaur-recovery effort should ever have to endure, described in their book Dinosaurs of Darkness (2000).
The cover of Dinosaurs of Darkness (2000), coauthored by Tom Rich and Pat Vickers-Rich, with cover art by famed paleoartist Peter Trusler.
Nearly nine years went by after the discovery of the track at Knowledge Creek, as it remained the only one in Victoria. That changed in early 1989, when geologist Helmut Tracksdorf found two more. While out for a walk along the genteel seashore near the small coastal community of Skenes Creek (Victoria), he spotted the tracks on a marine platform only 50 meters (~160 feet) south of The Great Ocean Road. Although these footprints were about 35 kilometers (18+ miles) east of Knowledge Creek, they were also in Early Cretaceous rocks, from a little more than 100 million years old. One of the tracks had three clearly defined toes, whereas the other was not so obviously a track. (Spoiler alert: But it was.)

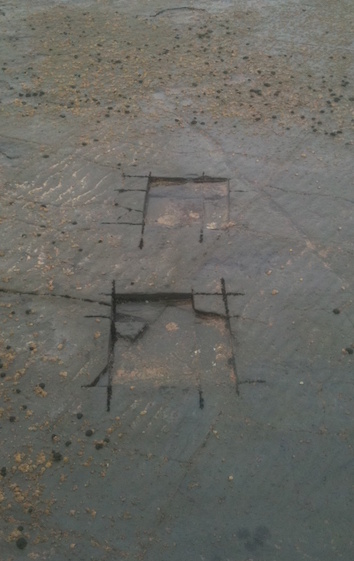

Helmut next did the right thing, and reported the tracks and their location to Tom Rich at Museum Victoria. On March 18, 1989, a field crew from the museum stopped by the marine platform, found the tracks, used a portable rock saw to cut each out into manageable sizes, and loaded the two slabs into a vehicle for the drive back to Melbourne. Again, these two tracks received a Museum Victoria specimen number and were placed in a drawer, sharing the same Exhibition Hall basement with the Knowledge Creek track. And there they stayed, also unstudied until just recently.

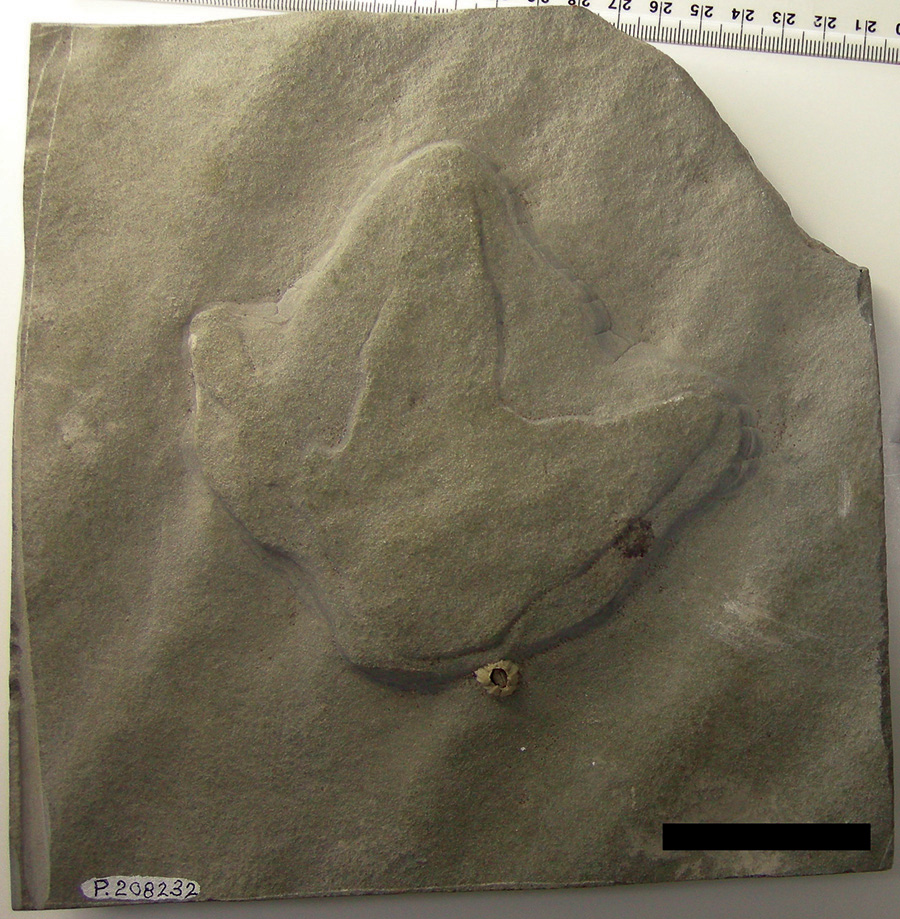

The better-defined of the two Skenes Creek dinosaur tracks discovered by Helmut Tracksdorf in 1989. The scale bar is 5 cm (2.5 in), so this track is also about 10 cm (4 in) wide, has three toes, and raised, just like the Knowledge Creek track. You can also tell it was on a marine platform because of the little crustacean (barnacle) on its lower right edge. (Photo by Anthony Martin.)

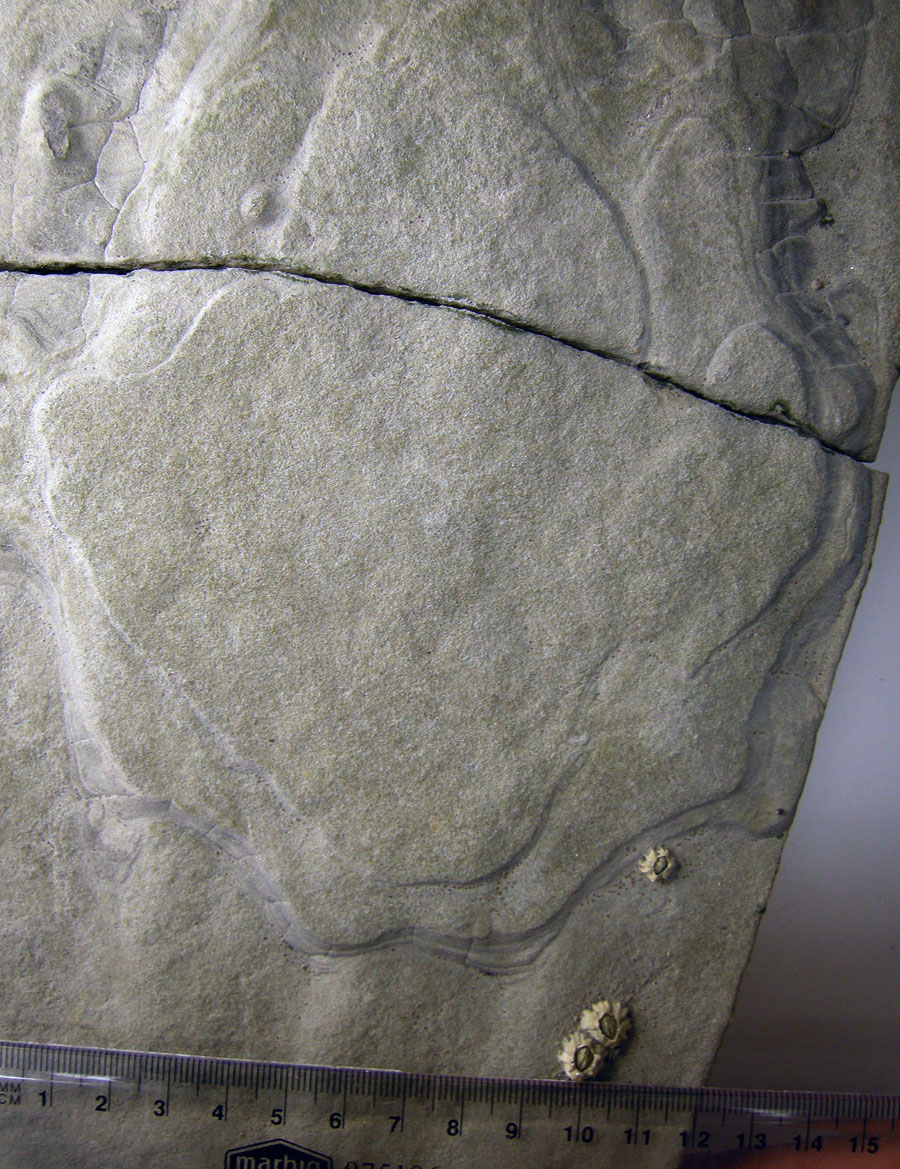

The not-so-well-defined of the two Skenes Creek dinosaur tracks discovered by Helmut Tracksdorf in 1989. Yeah, I know, it’s blobby and you have to squint and maybe have a few beers before it starts looking like a three-toed dinosaur track, but it’s a track. Just like bones, tracks aren’t always perfectly preserved, either. (Scale in centimeters; photo by Anthony Martin.)
Oddly, Helmut did not receive any confirmation that the tracks had been collected. He only learned of their acquisition indirectly later in 1989 when he saw rectangular holes in the marine platform marking where the tracks used to reside. Also, whoever wrote the specimen label in 1989 did not record that he was the person who discovered the tracks. Years later, I asked Tom, Pat, and others at the museum then, and no one could recall who found it. Only in October 2013 did I and everyone else finally find out it was Helmut, who wrote to me to confess his role after reading a blog post of mine. For that, I thank him most sincerely for his long-time non-credited contribution to the dinosaur ichnology of Victoria.
Helmut Tracksdorf, who in 1989 discovered Victoria’s second and third dinosaur tracks, as well as Victoria’s first dinosaur trackway. Here he is more recently taking a rest from bushwalking by sitting on Cretaceous rocks of the Victoria coast. Also, he either lost his boots or was busy making his own distinctive tracks for future generations to discover. (Photo courtesy of Helmut Tracksdorf.)
In February 2006, about 17 years after Helmut’s find, I was in Australia on a rare sabbatical from my university (very rare, too rare, as in, the only one ever). I was there primarily to work on a science-education project with Pat, who I had long admired as both a scientist and science educator. Yet within my first week there, Tom Rich invited me to go with him to the Dinosaur Dreaming dig site near Inverloch, Victoria. Tom, Pat, and the other dinosaur hunters of Museum Victoria and Monash University had abandoned Dinosaur Cove since the early 1990s, and Dinosaur Dreaming was their “new” polar-dinosaur dig site. Again, it was relatively close to Melbourne (only a little more than a two-hours drive away), and although it had its own set of logistical challenges, it was was much easier to access than Dinosaur Cove.
On the morning of February 26, 2006, Tom drove just him and me from Melbourne to the Dinosaur Dreaming site, and I was soon walking on the Cretaceous rocks of Victoria for the first time. That same day, I found two large theropod dinosaur tracks, the first ever found in Victoria, but which Tom instantly rejected as real when I showed them to him. Later that day, he drove off with my field boots on the top of his Land Rover. But both of those are stories that can be told another time.

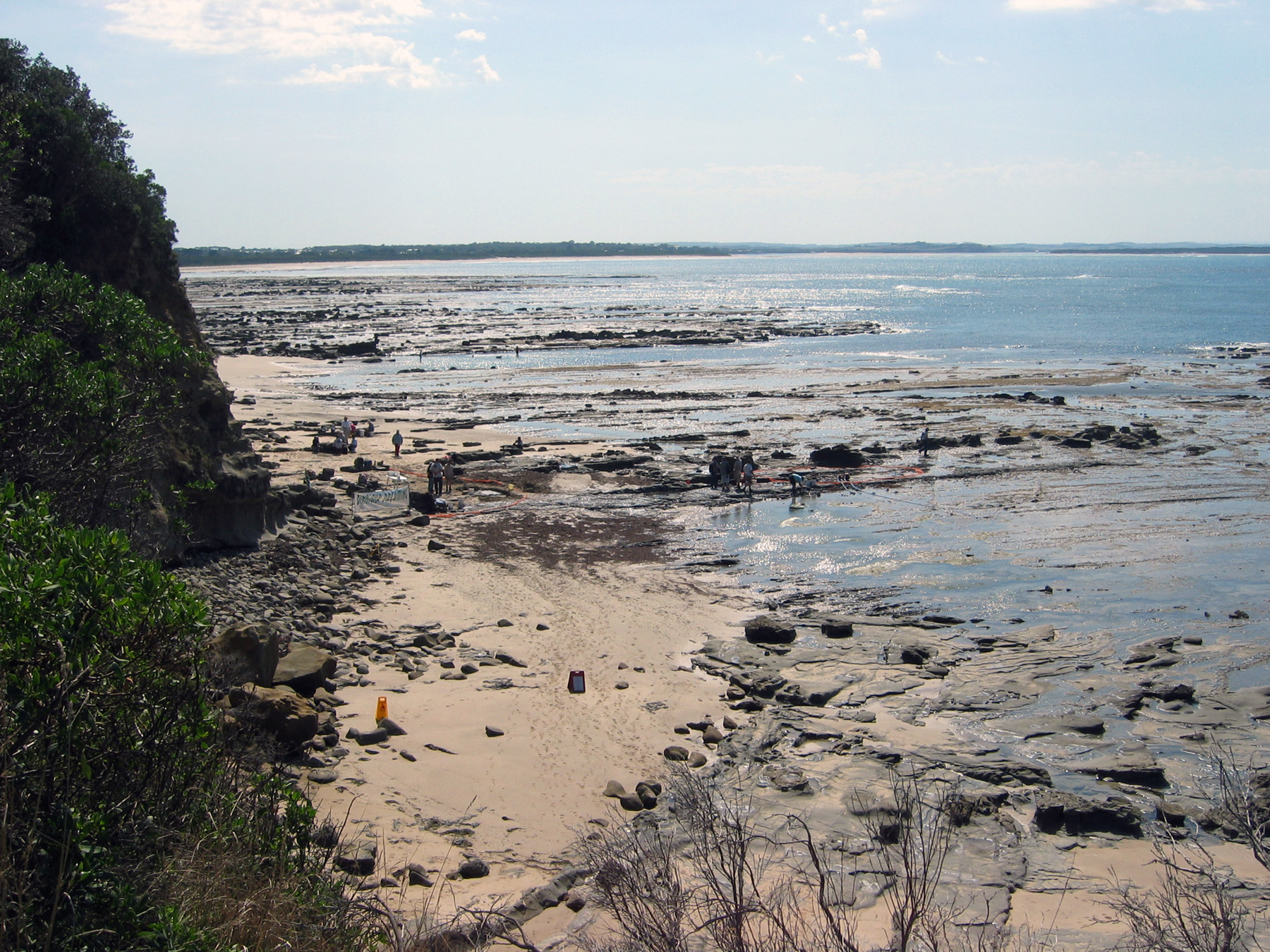

My first view of the Dinosaur Dreaming site (near Inverloch, Victoria) on February 24, 2006. The photo was taken from a car park just above, with wooden steps leading below, lending to a bit more civilized journey for volunteers compared to Knowledge Creek or Dinosaur Cove. (Photo by Anthony Martin.)
Since that day in 2006, I’ve worked with Pat, Tom, and others there on-and-off for the past ten years, during which I have found and/or documented a few other trace fossils in that part of the world. Some of these turned out to be paleontologically significant (such as this one, this one, this one, and oh yeah, this one), and more are on the way. It’s been a really good journey for all of us, and my working with Pat and Tom changed my life and career for the better. I am extremely and unreservedly grateful to them for their mentorship and friendship.
Yet probably the most important gesture of support for my ichnological work in Victoria came from Tom in 2010. He decided to apply unused Museum Victoria research funds to fly me round-trip from Atlanta, Georgia to Melbourne, Victoria, and paid for a month of our doing field work together along the Victoria coast. It was an unforgettable experience in many ways, which I partially documented in my first blog (The Great Cretaceous Walk, dormant since 2011). We walked together for probably a few hundred kilometers on the rugged Victoria coast, him looking for bones, and me looking for dinosaur tracks, insect and crustacean burrows, and other trace fossils. You could say it was a bit of an adventure.
Yours Truly in May 2010 with Cretaceous sandstones to the left and the ocean to the right, near the start of what I called “The Great Cretaceous Walk.” (Photograph by Tom Rich.)
Three weeks into that excursion along the Victoria coast with Tom, I’m happy to say I finally helped end the drought of dinosaur-track discoveries in Victoria, which had seemingly been in limbo since the 1980s. While walking along Milanesia Beach, west of Knowledge Creek and Dinosaur Cove, I spotted a motherlode of small dinosaur tracks on a rock slab there. Tom and Greg Denney – a long-time friend of Tom’s from Dinosaur Cove – were with me at the time, and Greg soon found another slab with more dinosaur tracks next to mine. The detailed story of this day and the discovery of these tracks is in a chapter titled The Great Cretaceous Walk in my book Dinosaurs Without Bones (2014).
Although the two slabs together only held twenty tracks, it still constitutes the best assemblage of polar-dinosaur tracks in the Southern Hemisphere. Would someone have eventually found these or other dinosaur tracks at Milanesia Beach? Probably. But thanks to Tom’s support and Greg’s help, we found them a lot sooner.
Most of the video footage shown here, along with thousands of photographs (and many more footsteps) were taken at Milanesia Beach by my wife Ruth Schowalter. We shared many adventures on the Victoria coast and elsewhere in Australia.
Thus in 2013, when paleontologist Erich Fitzgerald of Museum Victoria sent out a request for former and current colleagues of Tom Rich to contribute research papers for a special volume in his honor, I readily accepted. But what topic could I address that would be scientifically meaningful, while also linking it to Tom and Pat? That’s when I decided to dust off my detailed notes, measurements, and photos taken of Victoria’s first dinosaur tracks during previous visits to the museum. There were just three footprints to study: the one Tom and Pat found in 1980, and the two Helmut found in 1989.

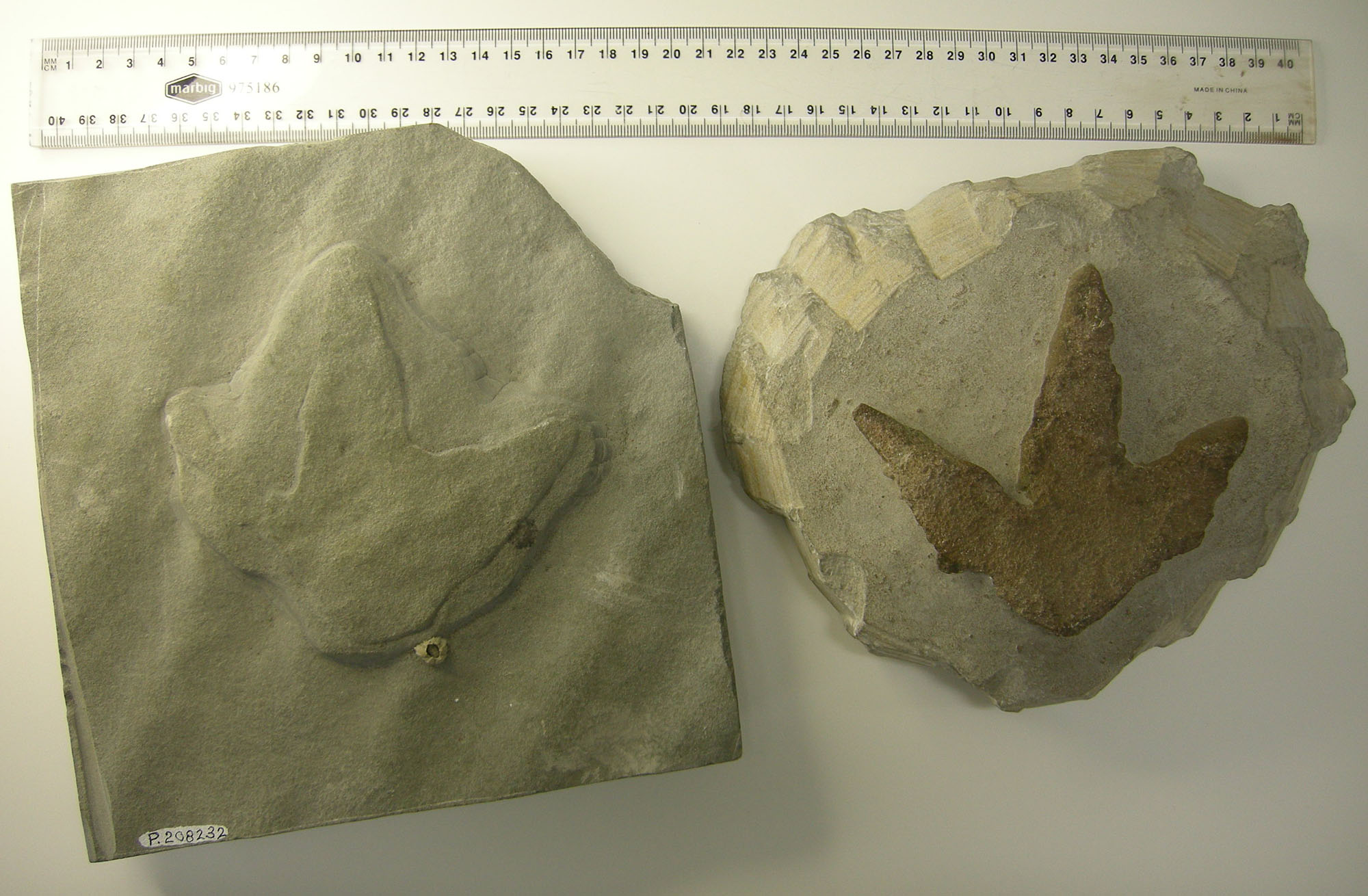

The two best-preserved of the Victoria dinosaur tracks of the 1980s. The one on the left is from the marine platform near Skene’s Creek and the one on the right is from Knowledge Creek. Even though they look almost identical, they were separated by more than 30 km (18 miles). (Photo by Anthony Martin.)
With only three tracks to examine, this was a manageable study, and I did it in an old-fashioned way, using a ruler, calipers, pencils, notebook, my eyes, and occasionally my brain as the main instruments for scrutinizing the tracks. No lasers, CT scanners, 3-D printing, virtual reality, aerial drones, avatars, self-aware AI devices, or other forms of technology were necessary for doing this science. All I needed was for one of the collections managers – David Pickering – to retrieve the tracks from Museum Victoria collections for me, a table to support them, and I was in business.
Because drawing is one of the best ways for me to observe, I started with making scaled sketches of the tracks, which helped me to pick up details missed in times before when just glancing at the tracks. This is an example of practicing what I preach, as I often require my students to make labeled drawings as part of their scientific process.

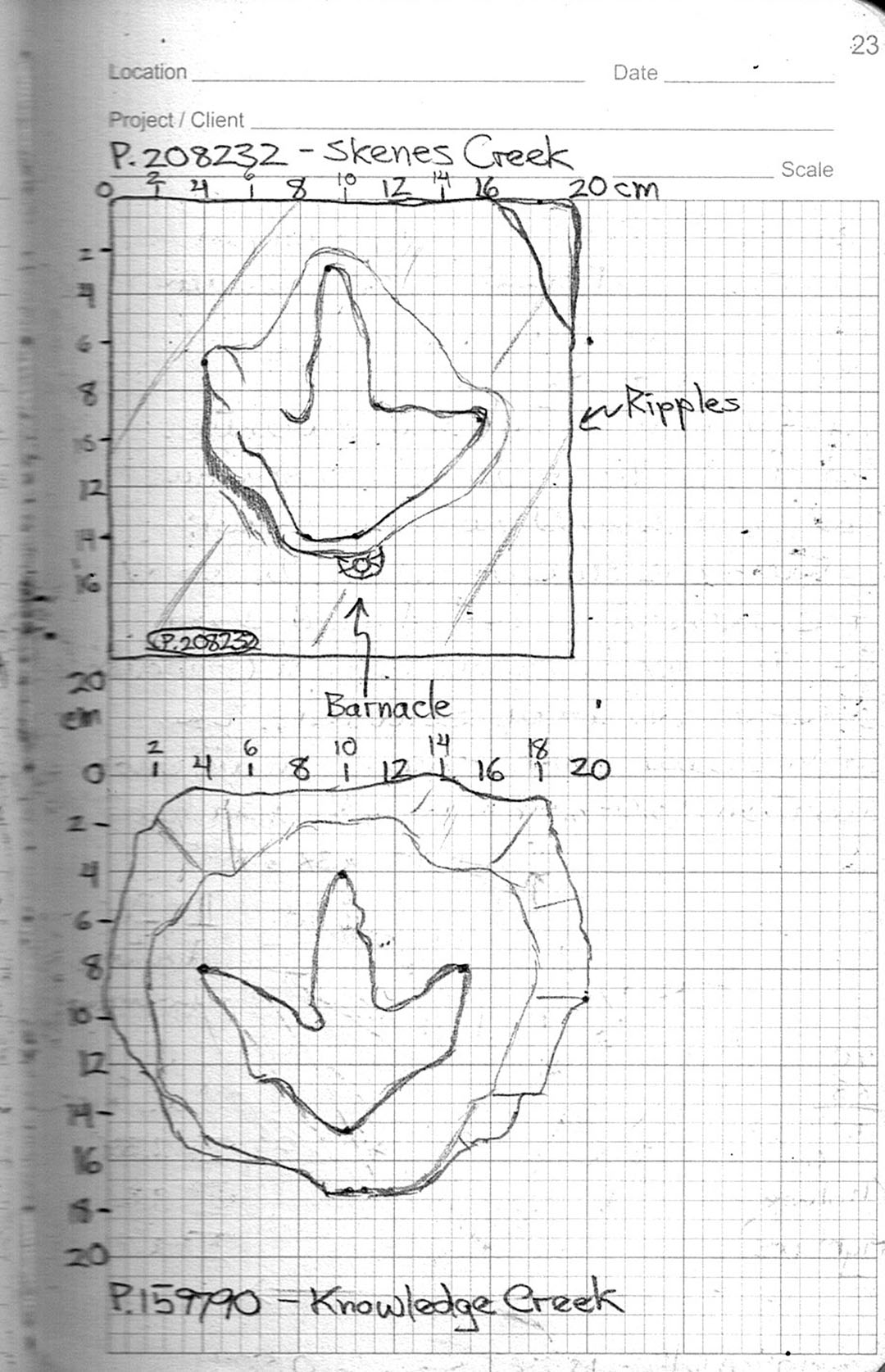

Scaled drawings (“maps”) of the two tracks, drawn on May 25, 2010, which helped me to compare their relative dimensions and forms. These and other sketches, descriptions, and measurements are in a field notebook, which I prefer using even when in a museum.
I also measured the tracks so that they were thoroughly quantified. Ideally, this meant I would have recorded track width, track length, widths and lengths of individual toes, and angles between the toes. However, two of the three tracks (from Skenes Creek) were not preserved well enough to measure everything I wanted, although one of those was good enough I could compare its measurements to those of the Knowledge Creek track. These numbers, when combined with my qualitative descriptions, later helped me to identify “who” (which dinosaurs) made the tracks.

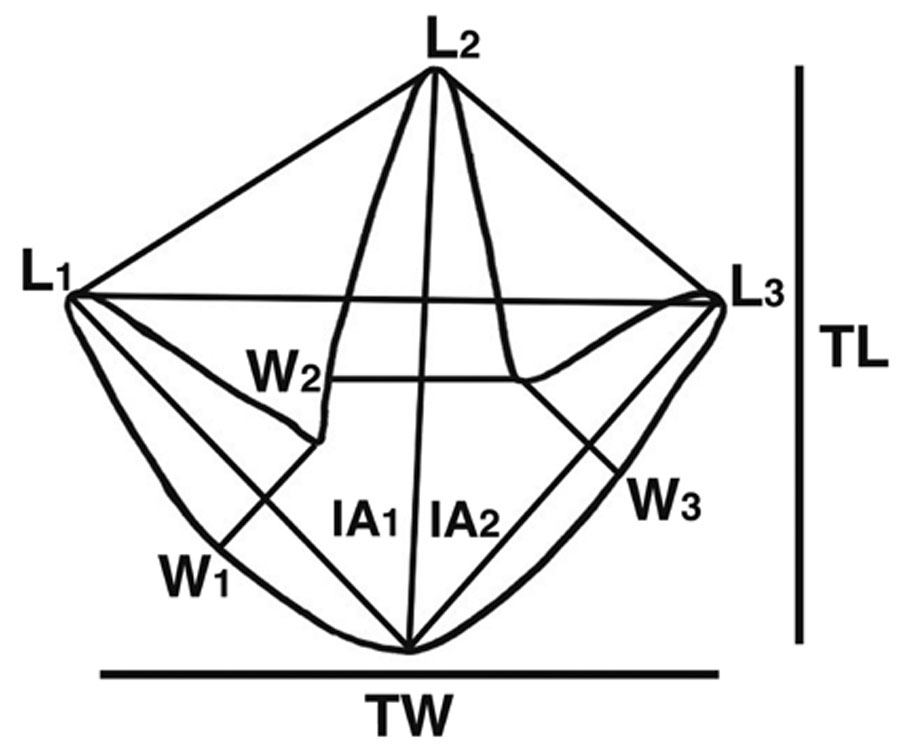

Diagram showing what was measured in the Victoria dinosaur tracks: TW = total width, TL = total length, L1-3 = digit lengths, W1-3 = digit widths, and IA1-2 = interdigital angles. Figure from Martin (2016).
Based on my perusal, these three-toed tracks were made by small ornithopod dinosaurs, often informally called “hypsilophodontids.” Although such dinosaurs do not belong an evolutionarily united group (clade), dinosaur paleontologists still use this term informally when talking about small ornithopods that lived during the Late Jurassic through the Cretaceous Period in different parts of the world. Among the Victorian dinosaurs found and documented by Tom, Pat, and others, hypsilophontids are the most common dinosaurs, abundantly represented by bones and teeth.
What’s significant about my interpretation is that these are the first known small ornithopod tracks from Victoria, and by default, all of southern Australia. (All other dinosaur tracks found in Victoria since the 1980s are from theropods, both bird and non-bird.) This is important because it officially connects the body-fossil record of small ornithopods with their probable trace fossils for the first time. Another meaningful facet of this connection is how the tracks scientifically affirm details of Peter Trusler’s remarkable 1992 painting, Early Cretaceous in Southeastern Australia – Spring Scene. In this artwork, he used the Knowledge Creek track as a template for depicting tracks made by small hysilophodontids on a sandy riverbank following spring thaws (and flooding) of that formerly polar region. So I was most pleased to have my science finally connect with his predictive (and gorgeous) artwork.
Peter Trusler’s extraordinary painting Early Cretaceous in Southeastern Australia – Spring Scene (1992), visualizing then-fresh three-toed tracks left by hysilophontid dinosaurs on a sandy riverbank after spring-thaw floodwaters had waned. Let me emphasize that this is a painting and he made it in 1992, meaning there is nothing digital about it. When I show it projected on a screen in my talks, people gasp because they at first think it is a photograph, but also because of its beautiful, evocative composition. No wonder I wanted it to be on the cover of my book Dinosaurs Without Bones.
One remarkable point about the two well-preserved tracks from Knowledge Creek and Skenes Creek, though, is their strikingly similar size and form. Despite being separated by more than 30 kilometers (18 miles) they could have been made by not just the same species of dinosaur, but the same dinosaur. They were even preserved the same, protruding from the top of the bed, instead of as depressions or natural casts on the bottom of a bed. This odd preservation likely was caused by the tracks filling with a different sediment holding the track, which then cemented more firmly, leaving the track behind when modern-day ocean waves eroded the top surface.
Yet another insight that came out of the study, and a totally unexpected one, resulted from correspondences with Helmut and ace Victoria-fossil-finder Mike Cleeland. After exchanging a few messages with one another, Mike decided that he and his wife Pip would try to re-locate the original discovery site for the tracks by looking for the 1989 saw marks in the rocky marine platform. And re-locate them they did. Even better, the rock-saw traces lined up, indicating that the two tracks were aligned, and likely from a trackway made by the same individual dinosaur. This means Helmut found Victoria’s first dinosaur trackway – consisting of two or more tracks made by the same dinosaur – in 1989. This was 21 years before I found what I thought was the “first” dinosaur trackway at Milanesia Beach, so I need to stop bragging about that. In my face!
The site of the first known dinosaur trackway discovered in Victoria (Australia), originally found in 1989 and marked today by rock-saw marks. (Pip Cleeland for scale; photo by Mike Cleeland.)
The sequential steps of a small ornithopod dinosaur represented by rock-saw cuts. (Photo by Mike Cleeland.)
Given such intriguing results, it was time to write the article and have it reviewed. However, it took a while. I wrote the main text of the article in a few months, then picked out and labeled photos of the tracks, made a few illustrations, put them all together into one coherent manuscript, and submitted the article for peer review in June 2014. A few months later I received the reviews, which were mostly positive and helpful. (Thanks, reviewers!) I changed the article accordingly, then resubmitted it a few months later. However, I didn’t see page proofs of the corrected article until July of 2015, and the final galley proofs until just a few months ago. So you could say I was most pleased when it was published last month, although probably not as much as the editor of the volume.
Because the article was one of many in a special volume honoring Tom, all authors were told to keep quiet about it so that it would be a big surprise for Tom and Pat once published. Somehow we did it, and on July 19, 2016, Tom received his bound copy of the volume and at Museum Victoria, flanked by former students Tim Flannery and Erich Fitzgerald. It must have been quite a special moment, and I smiled when I saw the following photo posted on Twitter the next day.
The Tom Rich special volume was complete once the secret was unveiled, which happened on July 19, 2016 at Museum Victoria. Here Tom is accompanied by his former students Tim Flannery (left) and Erich Fitzgerald, the latter of whom did a ripper of a job on editing the volume. (Photo by Alastair Evans.)
Other than everything else I said before, are there two takeaway messages from this study? Yes. One is that amateur contributions have been and always will be important for paleontology. Helmut Trackdorf’s discovery of the first dinosaur trackway in Victoria in 1989 and his contacting me about it in 2013 may seem small when compared to other discoveries in that area of the world. Yet it is a puzzle piece that now fits better in our picture of Cretaceous life in that area of the world: every little bit helps. Also, now that we’ve relocated the original discovery spot, we might find more dinosaur tracks near there. We’ll see.
The second message is that well-curated museum collections are damned important for doing a lot of good science in paleontology. For instance, I have been to Knowledge Creek three times, and on all three of those visits I looked for the chiseled hole in the marine platform where Tom Rich and Pat Vickers-Rich found that first dinosaur track in 1980. Alas, I did not find it. So if they had not collected the track and put it in Museum Victoria, it may never have been found and studied by me or anyone else. The same goes for the Skenes Creek tracks found my Helmut Tracksdorf in 1989: If these hadn’t gone to the museum, no study of those, either.
Those tracks belonged in a museum, and so did I. But if the museum wasn’t there to act as a repository for the specimens, or it didn’t have collections to study, then I wouldn’t have been there either. What’s the moral of the story? Support museums.
In summary, this is a little article about a few fossil tracks made by two small dinosaurs a long time ago in a cold place very far away from when and where I am right now in Atlanta, Georgia. Yet I am very proud of it as a way for me to give something back to my mentors and other discovers out there, as well as all of the good people in Victoria who helped make it happen. Good on ya, mates!
Afterthought: The main reason why I published this article with Memoirs of Museum Victoriarather than another journal was to honor Tom Rich. But what sealed the deal for me was learning that the article would also be freely available to the people of Victoria – or anyone else, for that matter – with an Internet connection. Some things in life are more important than journal impact factors. So there.
It might seem a bit strange to consider traveling back 450 million years as a “homecoming.” But geologists time travel often enough to qualify as Time Lord apprentices, regardless of whether we are traveling by phone booth, car, or on foot. What creates this situation is how geologists may experience much of their training, teaching, or research interests in rocks of a certain age, gaining a certain comfort level when dealing with the earth of that time.
“Hey everyone, let’s go to the Ordovician!” “Sounds good to me. Road trip!” You can do this when you live in a place with abundant, fantastically preserved, and freely available fossils. Which incidentally describes the area around Cincinnati, Ohio. (Photo by Anthony Martin.)
For me, my most recent homecoming was to the Ordovician Period, a geologic time span of about 488-444 million years ago. As a geologic period, its life and marine environments are represented quite well by the world-class fossil-bearing limestones and shales in and around the area of Cincinnati, Ohio. This is where I gained my formative training as a paleontologist, as I studied Ordovician rocks and fossils in the area while working on an M.S. degree in geology at Miami University in the mid-1980s. (Incidentally, Miami was a university before Florida was a state, and the rocks around it are much older than any in Florida, too. As a matter of pride, then, I like to inform people that I went to the “real” Miami.)
So last month I was lucky enough to participate in two field trips and a paleontology mini-conference in the region of Cincinnati, Ohio, which felt very much like a homecoming. The field trips and conference were co-sponsored by: the myFOSSIL Project, an NSF-funded initiative working to unite avocational (“amateur”) fossil collectors with professional paleontologists while enhancing STEM (Science Technology Engineering and Math) through the science of paleontology; The Dry Dredgers, a fossil-collecting club founded in 1942 (!) in Cincinnati, and consisting of some of the most knowledgeable and enthusiastic collectors I’ve met anywhere; the Cincinnati Museum Center, which hosted the conference and keynote talk (more on that soon); and the Paleontological Society, which was ably represented at the mini-conference by their current president, past president, and other officers and members.
Exterior of the Cincinnati Museum Center, which helped to host the Paleontology Mini-Conference, houses a fantastic collection of Ordovician-age fossils, and served as the venue for a keynote talk given by Yours Truly. The museum building originated as the Cincinnati Union Terminal in 1933 and was later converted into the museum in 1990. It’s a very neat place for both its art-deco architecture and its displays, and every visit to the Cincinnati area should include it. Right after having some Skyline Chili and Graeters Ice Cream, that is. (Photo by Anthony Martin.)
Already I’ve listed many reasons for being there, but the main incentive was as the keynote speaker for the mini-conference, an invitation I received and gratefully accepted late last year. For that, I gave a public lecture at the Cincinnati Museum Center on a Friday night, and on the topic of my most recent book, Dinosaurs Without Bones (2014). I had my usual fun time with the lecture, the audience had a variety of thoughtful questions for me to answer and otherwise discuss, and I happily did a book signing afterwards. We were then given a tour of the museum, which has world-class Ordovician fossils in it and much more.
Sound great? It was. But the real highlight of my journey was seeing the Ordovician rocks and fossils in the area. Hence I had to participate in the pre-meeting and post-meeting field trips to various roadcuts in Kentucky, Indiana, and Ohio while there. As an ichnologist, I was was also keenly interested in revisiting the trace fossils in these rocks, which I had not seen in a long time (by human standards). Accordingly then, the following photos show some of the people and outcrops we visited, but really focus on the coolest trace fossils I saw, accompanied by my attempts to explain each.
Many thanks to everyone who made the 2016 Cincinnati Paleontology Mini-Conference happen, and much appreciation for taking me back “home” to the Ordovician.
The pre-meeting field trip and part of the post-meeting trip benefited from the presence of the indefatigable Dr. Carl Brett from the University of Cincinnati. I am continually awed by both his knowledge of the Ordovician rocks and fossils and his unrestrained enthusiasm for sharing this knowledge. Even better, he loves trace fossils, which officially makes him my new best friend. (Photo by Anthony Martin.)
Roadcuts like these, all chock full of Ordovician body fossils and trace fossils, make me and other paleontological connoisseurs very happy. (Photo by Anthony Martin.)
Carl Brett found these gorgeous trilobite resting traces at the very first outcrop, which at first made me a little jealous, but I got over it quickly enough after staring at these beauties for a few minutes. These were probably made by a species of Flexicalymene, which burrowed down into a firm mud below, possibly to hide from predators but also as shelter from other problems above. Later, silt and fine sand filled in the depressions, making these natural casts. Be sure to look for the little trilobite tracks, too.
How about the cutest trace fossil I saw? Here’s a tiny trilobite burrow I found on the bottom of a siltstone bed (my thumb is pointing to it). The dual pathways mark where its little legs pushed down and into the sediment below it; it have been made by a juvenile or full-sized adult that just happened to be really small. It is again preserved as a natural cast, so you’re looking at the bottom of the bed. (Photo by Anthony Martin.)
Most of these trace fossils are compressed and intersecting horizontal burrows, which are visible because they are filled with a different sediment than the surrounding rock. Notice smaller-diameter and more complicated burrow system to the right, which apparently was made first, as the other burrows cut across it. Both were likely feeding burrows made by worm-like animals. (Photo by Anthony Martin.)
At least four different types of trace fossils are on this slab: the little “pockmarks” that also show some branching; the lined burrow toward the top of the slab (eroded so that it looks like a snail trail); the long, discrete burrow just above the scale, and the “dumbell” one on the lower right. Applying the principle of cross-cutting relations, can you work out the sequence of which burrow came first, second, third, and last? All were likely made by wormy critters and are feeding burrows, although the “dumbell” burrow also served as a home, as we’re looking at the top of a U-shaped burrow. More on that with the next photo… (Photo by Anthony Martin.)
The trace fossils on this surface are similar to that of the previous one, but has a lot more “dumbells,” which represent U-shaped burrows that were originally tubular, with the critter – maybe a worm, maybe a crustacean – having its head close to one opening and its rear end close to the other. To visualize these burrows in three dimensions, make a “U” with your thumb and forefinger, turn it so you are looking at the tips of your fingers, and imagined a line of collapsed sediment between the two limbs of the “U.” (Photo by Anthony Martin.)
These are bottom expressions of the U-shaped burrows, but omitting the tubes. The curved lines inside the linear parts show where the maker of the U-shaped burrow moved its burrow up or down in response to what was happening on the surface. A little confused by that? You’re not alone, and welcome to my world. (Photo by Anthony Martin.)
Here are partial vertical sections of two U-shaped burrows, with the one on the left also displaying the internal structure made by animal as it moved its burrow up or down, depending on whether it had sediment dumped on top of its burrow (move up!) or the top was eroded (move down!). I think this one went down, but can’t say for sure without seeing the burrow bottom, which is not preserved here. (Photo by Anthony Martin.)
This branching burrow, which if reconstructed in three dimensions would look like an upside-down bush, was made by an animal (or several with their burrows overlapping) feeding on the sediment. The branches are from repeated probing into the surrounding sediment, then withdrawing, then probing again. (Photo by Anthony Martin.)
What other trace fossils are in these outcrops of Ordovician limestones and shales? Too many for these people to see them all and study, but clearly they don’t care. And that’s a good thing. (Photo by Anthony Martin.)
Think of a crinoid, and you will likely visualize one of these gorgeous echinoderms looking like a colorful, delicate flower on a brightly lit seafloor, aptly justifying its nickname as a “sea lily.” Take your crinoidal fantasy just a bit further, and imagine its fine, feathery arms gently waving in harmony with ocean currents passing through them, its stalk bending with each current, but otherwise staying firmly attached to a sea bottom. If you know a little more about crinoids, though, you might also think of one without a stalk – a “feather star” – swimming above the ocean floor, performing an aquatic dance reminiscent of the Hindu Mother Goddess Durga.
A swimming stalkless crinoid (“feather star”) at the Tanjung Papaya dive site, Mandado Bay, Indonesia, recorded by Pim Van Schendel in October 2015. Notice how its barely touches the sandy bottom, leaving few clues of its behavior in the sediments below.
You might also let your dreams go back to the ancient past, when crinoid “meadows” blanketed shallow-marine environments throughout the world, starting about 450 million years ago in the Ordovician Period and continuing through the Paleozoic Era. By the Carboniferous Period, crinoids were so abundant that their body parts contributed to limestones we now use for buildings. Following the mass extinction at the end of the Paleozoic, crinoids became more rare, but several lineages persisted through a few more mass extinctions, including the living ones that delight us today.
An Ordovician crinoid “meadow,” buried by a tropical storm about 440 million years ago. Slab is about 2 m (6.6 ft) wide, and more than a hundred exquisitely preserved are preserved on it. Specimen is at the Cincinnati Museum Center (Cincinnati, Ohio), and was discovered, recovered, and donated by Dan Cooper of The Dry Dredgers fossil club to the museum. (Photograph by Anthony Martin.)
Now, instead of such idyllic reveries, think of a crinoid experiencing a slow, agonizing death. Imagine it imitating the clichéd image of a man crawling through a desert and croaking the word “water” as it pulls itself along a barren and air-filled landscape, searching for a comforting sea. If this is not a jarring enough of a picture for you, don’t worry, it gets worse. The crinoid doesn’t quite make it to the sea, and when it can’t move any further, it tries in vain to attach itself to the land beneath it. Minutes later, it dies. A few hours pass before it is finally submerged (too late) by the next high tide, its body put to rest under a blanket of sediments.
The real twist to this story, though, is how 170 million years later, some upright bipedal primates – at least a few of whom were quite fond of crinoids – spotted this one on a ground surface in the middle of present-day Portugal, still connected to its last trail of life.
The only known trace fossil of a crawling crinoid in the geologic record in a limestone bed of the Chãi des Pias Formation (Middle Jurassic, about 170 mya) near São Bento, Portugal. The red arrow points to the trail, evident here as a shallow, meandering, and slightly darker groove. How do we know a crinoid made it? Because it ends with a crinoid. Its last three decisions were to move to the right, then to the left, and stop forever. (Photograph by Anthony Martin.)
I was lucky enough to see the only known trace fossil of a crawling crinoid and the crinoid that made it during a paleontological field trip last month in Portugal. The trip was connected to the International Ichnological Congress, a once-every-four-year meeting simply known as Ichnia. The field-trip stop with the crinoid and its trail was at a relatively modest outcrop of Middle Jurassic limestone near the Portuguese parish of São Bento (Porto de Mós municipality).
Despite constant rain that day and the small area exposed at the field site, its trace and body fossils grabbed our attention, then held us as willing captives for more than an hour. Among the ichnological treats offered by this Jurassic tidal-flat deposit were crab trackways – including what might be the longest invertebrate trackway in the geologic record – long snail trails, crustacean burrows, fish trails, and much more. For those people who love body fossils, and especially of echinoderms, the rock also held beautifully preserved sea stars and spiny sea urchins. It was marvelous, and for days afterwards, all of the trip participants talked about this place and its bounty.
Given such fossil riches, it is tempting for me to share them all with you here. Nonetheless, I will instead focus on the star: not a sea star, but a relative. Despite the rain, its trail was easy to spot, as it was located inside of a white-yellow strip on the surface of an otherwise dull-gray limestone. The area surrounding the trace fossil had been inadvertently brightened by the researchers studying it. When they made a latex mold of the trace fossil, the latex took some of the weathered surface with it. From my perspective, it looked like a landing strip. Which, in a sense, it was.
Crinoid coming in for a landing, the hard way. The bright area marks where paleontologists made a latex mold of the crinoid trail, but also. shows how it crawled for more than 2 m (6.6 ft) along the tidal-flat surface. The crinoid is at the far end of the strip. Based on all of the paired shoes with people wearing, one might conclude that the rain was doing a poor job of dampening our enthusiasm. (Photograph by Anthony Martin.)
A close-up of the first part of the crinoid trail. Once stranded on the tidal flat, it began dragging itself across the originally soft sediments, leaving a groove from its stalk and impressions from its arms (arrow). Scale has centimeters on the left and inches on the right. (Photograph by Anthony Martin.)
Although this fossilized crinoid trail is underwater here, it wasn’t when the crinoid made it. Exposed on the tidal flat, it tried to get back to the sea by pulling itself forward with its arms, its stalk dragging behind it. Its arms left a wake of disturbance on either side of a thinner central groove from its stalk. (Photograph by Anthony Martin.)
The end of the trail, which was not a happy one for the crinoid, but ultimately a fulfilling one for paleontologists and ichnologists. (Photograph by Anthony Martin.)
Trace fossils that represent the last moments of an animal’s life – corroborated by a direct association of the animal with its trace – are rare, but known. Such traces, whether modern or fossil, are called mortichnia (mort = “death” and ichnia = “traces”), and this trail with its crinoid maker definitely qualifies as one. Based on this trace fossil and many other geological clues at the outcrop, it was on what was originally a tidal flat, an environment well outside of a crinoid’s comfort zone. It may have been happily filter-feeding offshore, but was uprooted by waves and washed up by a high tide.
Because this is a Jurassic crinoid, you might wonder (as I did) if any modern stalked crinoids can crawl like this, using their arms to drag themselves along a sedimentary surface. The answer is yes, they can. But this is easier for a crinoid to do when underwater, where it is more buoyant. As far as I know, no one has experimented with modern stalked crinoids to see whether they can do this on land, let alone documented any of these animals getting dumped onto a tidal flat and then trying to make it back home.
Footage of a crawling stalked crinoid, albeit one underwater. This one was observed in about 400 m (1,300 ft) deep water off Little Bahama Bank, as reported by Baumiller and Messing (2007). For a detailed analysis of its movement and the traces that would result from this, read their article here.
Although the species of crinoid that made its death crawl is not yet identified, the researchers who studied it concluded it is an isocrinoid. Paleontologists who have studied stalked crinoids figured that the first ones capable of crawling may not have evolved until the Devonian Period, about 350-400 million years ago. Until then, they were sedentary. What changed, giving crinoids good reason to get up and walk away? Probably predation. Predators, which likely included fish but also other echinoderms, must have found crinoids easy and tasty targets, which would have favorably selected for more mobile forms. As Eddie Vedder might say, it’s evolution, baby.
Once Ordovician crinoids settled down, they had no place to go. (Photograph by Anthony Martin, taken at the Cincinnati Museum Center.)
I won’t go through all the details of the report on this crinoid and the other extraordinary trace and body fossils at this site in Portugal. For that, you can read the original research article by Carlos Neto de Carvalho – who was also one of the field-trip leaders – and his colleagues, published earlier this year. All of them deserve to be famous for this extraordinary discovery, and I and my colleagues who were there all felt privileged to have seen it for ourselves, 170 million years after a crinoid went on its final journey.
Many thanks (muito obrigado) to Carlos Neto de Carvalho and Joana Rodrigues for organizing and leading such memorable field trips before and after Ichnia 2016, giving us all an appreciation for the wonderful paleontology and culture of Portugal. For more information, photos, and videos about stalked crinoids, check out Christopher Mah’s excellent post Stalked Crinoid Roundup! and other crinoid-related posts at his appropriately named blog, Echinoblog.)
Baumiller, T.K., and Messing, C. 2007. Stalked crinoid locomotion, and its ecological and evolutionary implications. Palaeontologia Electronica, 10, 2A. (PDF of open-access article here.)
Neto de Carvalho, C., Pereira, B., Klompmaker, A., Baucon, A., Moita, J.A., Pereira, P., Machado, S., Belo, J., Carvalho, J., and Mergulhão. 2016. Running crabs, walking crinoids, grazing gastropods” behavioral diversity and evolutionary implications of the Cabeço da Laderia Lagerstätte (Middle Jurassic, Portugal). Communicações Geológicas 103, Especial 1, 39-54. (PDF of open-acccess article here.)
Legends and storytelling are an intrinsic part of being human. Given this statement, you might then also think of myths and other stories you’ve heard throughout your life. Which were the most memorable, and why? With such remembrances, your next step may be to do something else that is very much a part of being human, which is to wonder whether that myth or story holds some lesson applicable to real life. Whether a story is an accurate account of reality is beside the point, as its imparted teachings are sometimes more important than factual accuracy.
Modern scientists say these depressions in a tilted rock surface near Sesimbra, Portugal were made by sauropod dinosaurs in soft sediments during the Jurassic Period more than 150 million years ago. But what if you lived in this area during the 14th century? How would you explain these depressions? While you’re thinking about that, here’s another question: If I hadn’t told you these were dinosaur tracks, would you even know they were tracks? (Photograph by Anthony Martin.)
Yet, what if reality and scientific reasoning – with the latter thriving on a spirit of disproof – rudely intrudes on a good story, disrupting its original intent? In such instances, a legend previously regarded as literal truth may lose its narrative power, as we begin to doubt not just its details, but also its intent. Can anything useful be salvaged from a myth when skepticism assaults faith? Should we completely reject parables once we know foxes do not talk about grapes, sour or otherwise?
Less than two weeks ago I visited a place where the basic facts of a long-held legend had been disproved, yet a lesson from it remains. The place is Cabo Espichel, marked by a lighthouse, church, and small chapel on a plateau high above rocky cliffs along the southwest coast of Portugal. Cabo Espichel is about a 90-minute drive from the modern metropolis of Lisbon, yet it felt far more remote, and very much connected to a medieval past.

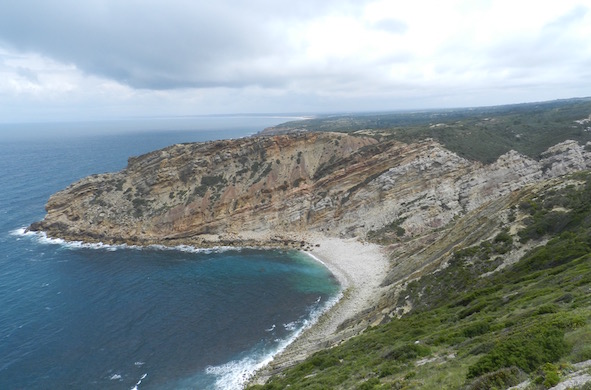

A view of Lagosteiros Bay from the top of Cabo Espichel. Also check out those gorgeous outcrops of tilted Jurassic and Cretaceous rocks! Gee, I wonder what trace fossils might be in them? (Photograph by Anthony Martin.)
The legend associated with that place concerns a 14th century visitation there by someone named Mary, who is also known by many other names: Saint Mary, Mary of Nazareth, Blessed Virgin Mary, Our Lady, The Madonna, or very simply the Mother of Jesus. Given the Catholic culture that is very much still a part of the Iberian Peninsula, her purported arrival to Portugal there was (and still is) considered a blessing and a ringing endorsement of Christianity there. Accordingly, the church complex is called the Santuário de Nossa Senhora do Cabo Espichel (“Sanctuary of Our Lady of Cape Espichel”).

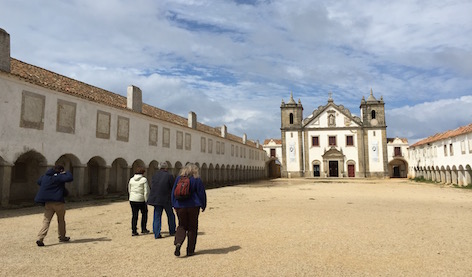

Ichnologists approaching the Santuário de Nossa Senhora do Cabo Espichel, Portugal, not on the way to confess their sins (that would have taken way too long), but to see the small chapel behind it, as well as some great coastal outcrops of Mesozoic rocks. So you might say they were there for a different type of worship. (Photograph by Anthony Martin.)
How did Mary get to Portugal from the Middle East? Given the absence of airlines then, she and the Baby Jesus traveled by boat. Once the Mother and Child reached the shore of Lagosteiros Bay below Capo Espichel, a giant mule carried them up the steep rock faces of Cabo Espichel. This scene came in a vision to two men in the area, who shared the same dream of her arrival on the same night. In a splendid example of confirmation bias, their testimony was taken quite seriously by the local populace and beyond, and has endured since.

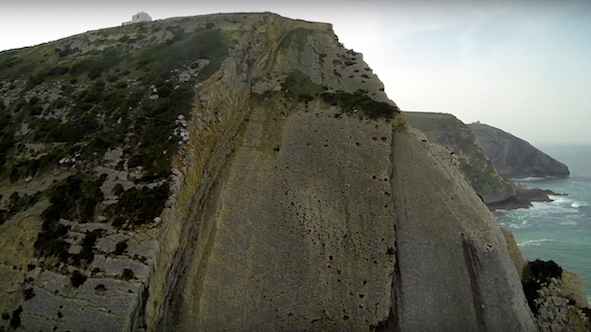

Cliff face below the present-day chapel and church at Cabo Espichel, with well-exposed and tilted bedding planes of sedimentary rock. This would have been the most likely route for a mule (giant or otherwise) to have accessed the top from Lagosteiros Bay. Photo is a still taken from an online edited drone video titled “Cabo Espichel – Dinosaur Trackway Adventure.” Related to the question asked in the previous caption: Huh, I wonder what those depressions on the rock face might be, how they relate to the legend, and the title of that video?
In commemoration of this momentous event, the church and chapel – the latter called Ermida da Memória (Chapel of Memory) – were built near the precipice. Portuguese royalty hosted annual feasts there, and many pilgrims put it on their spiritual “bucket list” as a must-visit place. Today, it is still visited by devout Catholics, who may be imagining themselves walking on the same holy ground trodden by Mary and her miraculous mule.
The Ermida do Memória seen from afar on Capo Espichel. Imagine it in the darkness of night, when suddenly a glow comes from the bay below. Inside this light, the head of a giant mule appears, and as more of its body emerges from the cliff edge, you see Mother Mary astride it carrying the Baby Jesus, accompanied by an aerial escort of angels and the most beautiful music you’re ever heard in your life. OK, Guillermo de Toro, I just wrote the scene for your next movie: the rest is up to you. (Photograph by Anthony Martin.)
So where did this legend come from: crazed fishermen who had spent one day too many at sea, villagers imbibing enthusiastically on local vinho verde, or clergymen overcome by ecclesiastic visions? No, this story actually had evidence backing it up. All one had to do is get in a boat just offshore, and you could see for yourself enormous footprints in the rocks leading from the sea to the top of the cliff at Cabo Espichel.

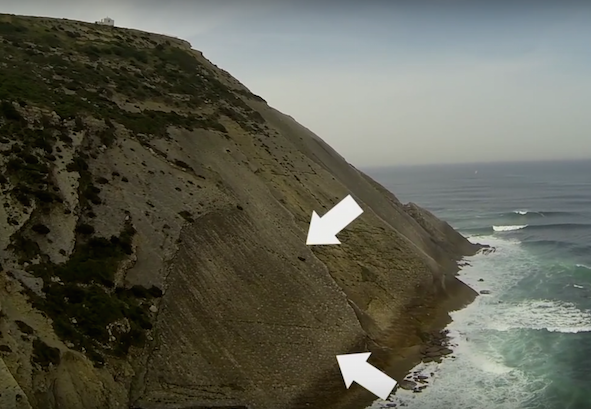

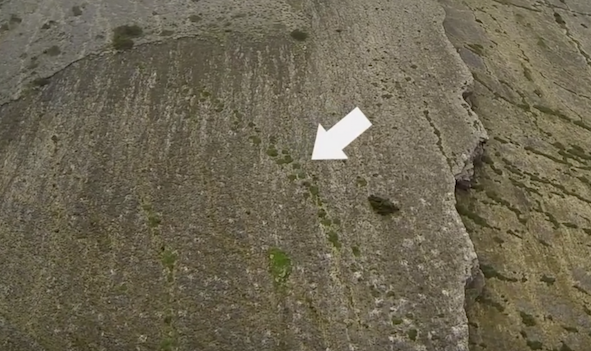

They’re a little tough to see from this far out, but the big white arrows help. The “mule tracks” are on tilted strata just above the bay, and compose diagonal-walking patterns. (Photo taken as still from video Cabo Espichel – Dinosaur Track Adventure. I would have prefaced that information with “Spoiler Alert,” but you did read the title of this post, right?)
A closer view of a rock surface with the diagonal-walking pattern clearly defined, accentuated by vegetation growing in the depressions. Don’t believe me that these are from the same site? Look up “Cabo Espichel, Portugal” on Google Earth™, scan the rock surfaces just north of the chapel, and see them for yourself. (Photo again is still taken from video Cabo Espichel – Dinosaur Trackway Adventure.)
These tracks, people said, marked where the weight of the mule pressed into the rocks. Even better, some of these tracks formed patterns clearly made by four-legged animals, and individual tracks were crescent-shaped, resembling the feet of mules or other horse-like animals. As a result, one name applied to this place is Pedras de Mula, which translates as “Rocks of the Mule,” although Pegadas de Mula (“Tracks of the Mule”) is also applied.
Every good story also needs images, and this one has a particularly noteworthy visual aid. The building of a chapel on the site in the 16th century contains tile artwork commemorating this divine calling; however, the tile was probably made later, in the 18th century. Although the chapel interior is closed to the public, a open slot in its door afforded a glimpse of this depiction, aided by the zoom lens on my camera. Like any good illustration, the story is neatly encapsulated in the tiles: Mother Mary and The Baby Jesus riding on a mule, with angels in tow and stunned onlookers properly prostrating.
18th century tiled artwork inside the Ermida do Memória depicting the legend of Mary’s visitation of Cabo Espichel. To all artists out there (and I’m one of you), the original creator of this work is unknown, hence image credit cannot be assigned here. (Photograph by Anthony Martin.)
Centuries later, ichnology happened. Beginning in the mid-1970s, geologists and paleontologists realized that the Mesozoic rocks of Portugal, including those at and near Cabo Espichel, held dinosaur tracks. This consciousness has been affirmed many times since, with discoveries of tracks belonging to a wide variety of Jurassic and Cretaceous dinosaurs: theropods, ornithopods, stegosaurs, and sauropods among them. Portugal is now rightly renown as one of the best places in the world to see thousands of well-preserved dinosaur tracks, all within just a few hours drive of one another.

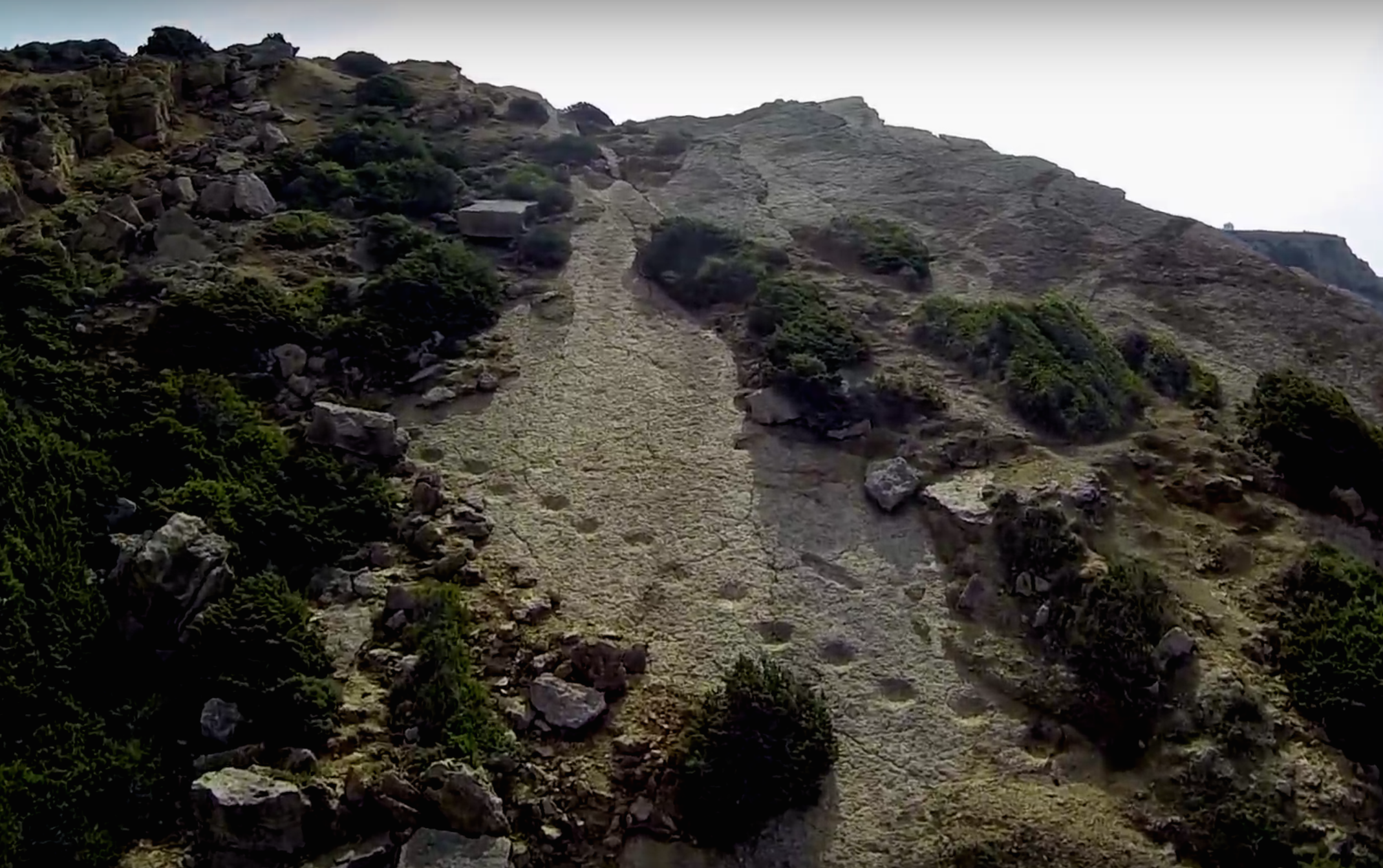

A close-up of a dinosaur trackway – probably from a sauropod – on one of the rock surfaces at Cabo Espichel. As folks would say in my part of the U.S., “Those ain’t from no mule.” (Photo is still from video Cabo Espichel – Dinosaur Trackway Adventure.)

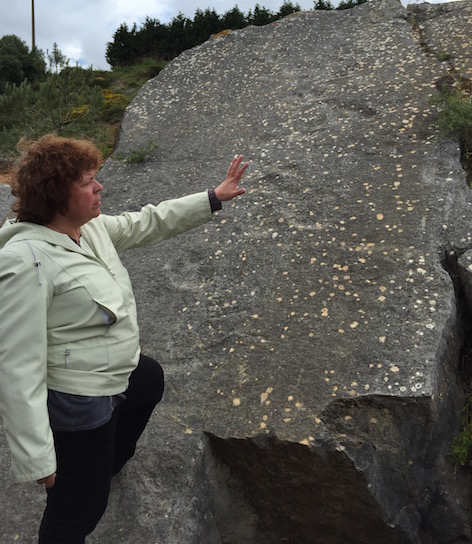

Dr. Vanda Faria dos Santos, Portugal’s premier dinosaur tracker, telling us about the sauropod tracks at the Avelino tracksite, just south of Cabo Espichel. Notice the abundant depressions on a tilted rock face, very similar to those at Cabo Espichel. (Photograph by Anthony Martin.)
Of these tracks, those of sauropods were the most relevant to the tale of Cabo Espichel. The majority of sauropod tracks in Portugal are very large, especially those of the rear-foot (pes), which can be about a meter long and nearly as wide. The front-foot (manus) impressions are smaller, but still approach a half-meter wide, and are crescent-shaped. You know, like those of a horse, or mule.

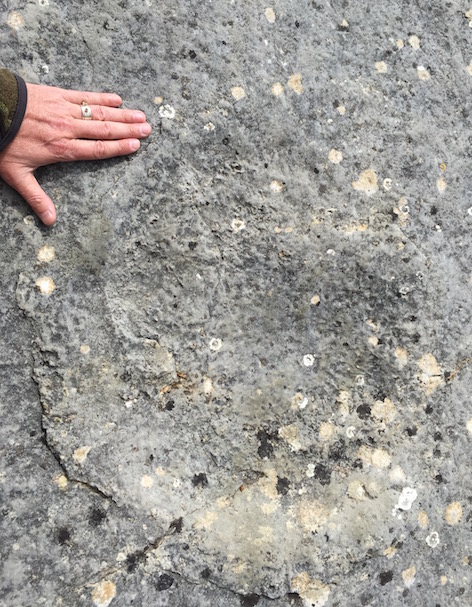

Front-foot (manus) track made by a Late Jurassic sauropod preserved as a cresent-shaped depression at the Avelino tracksite near Sesimbra, Portugal. (Photograph by Anthony Martin.)
A detailed field study of the tracks at Cabo Epischel, done by Martin Lockley, Christian Meyer, and Vanda Santos in 1993 and published in 1994, confirmed that the “mule tracks” at Cabo Epsichel were indeed those of sauropods. The original surfaces were of soft sediment and horizontal; only later did a combination of cementation and plate tectonics harden and tilt these rocks, with coastal erosion finally rendering their current appearance. Moreover, ten sauropod trackways on one of the bedding-plane surfaces there recorded the herding movements of seven smaller sauropods (juveniles) and three larger ones (adults), all of them walking in more-or-less the same direction. These results thus made the site scientifically famous, as it was one of the first convincing examples of family herding behavior in sauropods demonstrated from their footprints.

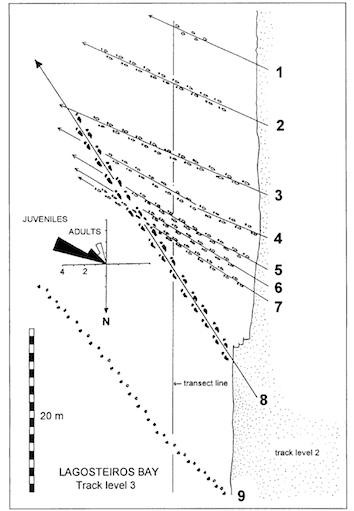

Trackway map of bedding plane at Cabo Espichel in article by Lockley, Meyer, and Santos (1994). The map shows parallel smaller (juvenile) sauropod trackways (numbers 1-7), followed by two larger (adult) sauropod trackways (numbers 8-9); another adult trackway is not on this figure, but was below the other two.
Here’s the full edited aerial-drone video linked previously, Cabo Espichel – Dinosaur Trackway Adventure. The video credit only says “rlage3,” so if the person/people who produced this would just let me know who you are, I’m more than glad to give full attribution. In the meantime, thanks much for providing such a nice overview of this beautiful and ichnologically rich area!
This situation with competing stories is where ichnology excels, as it is also a science based on storytelling. Granted, the story told by ichnologists is radically different from the one first accepted by the 14th century people of Portugal, or those since who have accepted the faith-based explanation for the tracks. On a personal note, I’m ex-Catholic; hell, I was an altar boy, went to a Catholic college for my undergraduate studies, and my mother was a more devout Catholic than most pontiffs. Thus I have much empathy for how people of faith (especially Catholics) feel about such things. So if pilgrims still chose to believe the tracks of Cabo Espichel were made by a giant mule bearing Mary and Jesus, and this fills them with joy, I’m cool with that. Just don’t tell me our science is wrong.
So now I will leave you with two provocative thoughts. The first is that the tile artwork in the chapel is the first known illustration of dinosaur tracks. Is it a scientifically accurate, to-scale, 3-D rotating digital model of a dinosaur trackway? No, but it’s still an illustration, and even though its interpretation does not qualify as science, it clearly shows a large, diagonal-walking trackway pattern on an inclined cliffside at Cabo Espichel. Let that sink in for a second: an 18th century artist must have seen dinosaur tracks on a bedding plane somewhere in that area, and faithfully reproduced them in a recognizable pattern.
Close-up of tile artwork in the Ermida da Memória, connecting the trackway pattern to a mule, but which we now can be sure was inspired by the trackway of a Late Jurassic sauropod dinosaur. (Photograph by Anthony Martin.)
The second thought is that although the interpretations of this trackway might differ radically, what they share is true: These impressions in the rock were made by enormous, walking, four-legged animals. How many modern people today, their eyes no-doubt glued to their 21st-century devices, would stumble in such tracks, possibly never recognizing their connection to animal life? So rather than make fun of the people of Portuguese past, or whoever else must have observed the tracks preserved in the rocks of Cabo Espichel, we should celebrate those who recognized these depressions as traces of life. In this sense, then, the faith-filled people of the past were doing their own form of ichnology in Portugal, centuries before we modern ichnologists walked in the same place.
Afterword: Many other paleontologists and science historians have written about the discovery of the first known sauropod tracks in Portugal, so I will not repeat nor summarize their contributions here. Instead, I’ve included the following bibliography. Many thanks to Drs. Vanda Santos, Paulo Caetano, Carlos Neto de Carvahlo, and Joana Rodrigues for teaching other ichnologists and me about the long ichnological history of Cabo Espichel.
Atunes, M.T. 1976. Dinossáurios Eocretácios de Lagosteiros. Ciéncias da Terra (UNL), 1: 1-35.
Atunes, M.T. 1990. Dinossáurios em Sesimbra e Zambujal – Episódios de há cerca de 140 milhões de anos. Sesimbra Cultural: 12-14.
Writing about a place, its environments, and the plants and animals of those environments is challenging enough in itself. Yet to write about that place and what lives there, but without actually being there, seems almost like a type of fraud. Sure, given a specific place, I could read everything ever published about it, watch documentaries or other videos about it, carefully study 3-D computer-rendered images of its landscapes, interview people who have spent much time there, and otherwise gather information vicariously, all without experiencing it directly. But then is my writing just about the shadows on the wall of the cave?
What do you see in this photo? I see fine quartz and heavy-mineral sand, originally parts of much larger rocks and forming parts of the Appalachian Mountains. I see the sand blowing down a long beach, but pausing to form ripples. I see a river otter galloping alongside the surf, slowing to a lope, then a trot, then back to a lope and a gallop. I see a brief rain shower, only about two hours after the otter has left the beach. (Photo by Anthony Martin, taken on Sapelo Island, Georgia.)
This pondering, of course, brings us to river otters. Yesterday, while on the third of a four-day writing retreat to Sapelo Island on the Georgia coast, my wife Ruth and I spent nearly an hour tracking a river otter along a long stretch of beach there. Had I read about river otters and their tracks before then? Yes. Had I watched video footage of river otters? Yes. Had I written about river otters and their tracks before then? Yes. Had I seen and identified their tracks before then? Yes. Had I seen river otters in the wild for myself? Yes, yes, and yes.
But still, this was different. When I first spotted the tracks on the south end of a long stretch of Cabretta Beach on Sapelo, I thought they would be ordinary. Granted, finding otter tracks is always a joy, especially when I’ve seen them on stream banks in the middle of Atlanta, Georgia. (Seriously, folks: river otters live in the middle of Atlanta. How cool is that?) And because Sapelo only has a few humans and is relatively undeveloped, your chances of coming across otter tracks on one of the beaches there isn’t like winning a lottery. But still.
River otter (Lutra canadenis) tracks in what I (and some other trackers) call a “1-2-1” pattern. For gait, that translates into a “lope,” which is typical for an otter. In this pattern, one of the rear feet exceeds the front foot on one side, but the other rear foot ends up beside that same front foot; one front foot is behind. If that second rear foot lags behind the front foot, then it’s a “trot,” but if it exceeds the front foot (both rear feet ahead of both front feet), then that’s a “gallop.” Also, check out the wind ripples beneath the tracks, and raindrop impressions on top of them. (Photo by Anthony Martin, taken on Sapelo Island, Georgia; photo scale in centimeters, with the long bar = 10 cm (4 inches))
What made these tracks different was that they went on, and on, and on. These otter tracks spoke for the otter, saying in no uncertain terms that walking, trotting, loping, and galloping on a beach was the only thing it had on its schedule that morning. For nearly a kilometer (0.6 miles), we followed its tracks in the sandy strip of land between the high-tide line on the right and low coastal dunes on the left.
Follow the river otter tracks for as far as you can in this photo. Then, when you can’t see them any more, decide where it went. Does that sound like a challenge? It probably would be if you’ve only written about tracking otters, but it can be tough for experienced trackers, too. (Photo by Anthony Martin, taken on Sapelo Island, Georgia.)
The tracks were only a few meters away from high tide, but sometimes turned that way, vanished, then reappeared further down the beach. This told us the otter was out close to peak tide that morning (between 6-8 a.m.) and was mixing up its exercise regime by occasionally dipping into the surf. Raindrop impressions on top of the tracks confirmed this, as the tracks looked crisp and fresh except for having been pitted by rain. For us, rain started inland and south of there on the island around 10 a.m., but reached the tracks sooner than that. We were there about three hours after then, so the otter was likely long gone, on to another adventure. Nonetheless, we made sure to look up and ahead frequently, just in case the trackmaker decided to come back to the scene of his or her handiwork.
For those of you who are intrigued by animal tracks (and why would you not be?), I suggest you try following those made by one animal, and follow it for as long as you can. That way you can learn much more about it as an individual animal, rather than just its species name. In my experience, after tracking an animal for a long time, nuances of its behavior, decisions, and even its personality emerge.
For example, this otter was mostly loping (its normal gait), but once in a while slowed to a walk or trot, or sped up, when it galloped. In short, the tracks showed enough variations to say that the otter was likely reacting to stimuli in its surroundings, and in many different ways. What gave it a reason to slow down? What impelled it to move faster? Why did it jump into the surf when it did, and why did it come out? Or, do otters just want to have fun?
Gallop pattern for a river otter, in which both of its rear feet exceeded the front feet, making a group of four tracks. In this instance, the group defines a “Z” pattern when drawing a line from one track to another, but gallops sometimes also produce “C” patterns. Notice also how the groupings are separated by a space with no tracks. This is also diagnostic of a gallop pattern: the longer the space, the longer the “air time” for the animal, when it was suspended above the ground between when its feet touched the ground. (Photo by Anthony Martin, taken on Sapelo Island, Georgia.)
Now I realize that discerning a “personality” and “moods” of a non-human animal based on a series of its tracks might sound like a little too “woo-woo” and “New Agey” for my skeptical scientist friends to accept, followed by jokes about my becoming a pet psychic. As a fellow skeptical scientist, I’m totally OK with that. In fact, I will join them in making fun of people who try to tell us that, say, they know what a Sasquatch was thinking as it strolled through a forest while successfully avoiding all cameras and other means of physical detection.
But here’s what happens when you’ve tracked a lot (which I have) and made lots of mistakes while tracking, but later corrected them (ditto). Intuition kicks in, and it usually works. For instance, at one point in following this otter, I lost its tracks on a patch of hard-packed sand. (Granted, I should have gotten down on my hands and knees to look closer, but was being lazy. Hey, come on, I was on a writer’s retreat.) So I then asked myself, “Where would I (the otter) have gone?” and looked about 10 meters (30+ feet) ahead in what felt like the right place. There they were. This happened three more times, results that led me to conclude this was almost like some repeatable, testable, falsifiable science-like thing happening. So there.
OK, remember when I asked you to follow the river otter tracks for as far as you could in this photo, and when you couldn’t see them any more, decide where it went? If not, go back and re-read it and look at the photo again. If you have, then look at the red arrow, backtrack to the footprints in the foreground of the photo, then go forward. Do you see how the tracks are staying in the subtly lower area, just left of the slightly higher sand piled on the plant debris? Keep picking out those low areas, and you’ll end up where the arrow is pointing. After all, if I were an otter, that’s where I would go. (Photo by Anthony Martin, taken on Sapelo Island, Georgia.)
Oh yeah, regarding my main topic sentence: What’s all this have to do with writing about a place? Well, because of that otter and its tracks, I now understand at least one otter much better than before, and feel like I can write with a little more authority about otters in general. You know, like what you just read.
Do you understand this river otter and its place a little better now, thanks to it leaving so many tracks while it enjoyed a morning at the beach, and because I tracked it for such a long time, and then wrote about that experience in that same place? Please say “yes,” as I want to keep writing about stuff like this. P.S. Thanks to Sapelo Island, this river otter, and my wife Ruth for teaching me so much yesterday. (Photo by Anthony Martin, taken on Sapelo Island, Georgia.)
For the past ten years, Labor Day weekend in my adopted home town of Decatur, Georgia means the Decatur Book Festival takes over the downtown area. This is always a good thing, as attested by the 70-80,000 people and more than 500 authors who attend it each year, as well as the tens of thousands of books sold, making it the largest independent book festival in the U.S. But this year I thought of a way to make it a little more exciting: Bringing back some recently departed Pleistocene megafauna to the area.
A small sample of book lovers attending the 2015 Decatur Book Festival, walking up and down Clairemont Road in lovely downtown Decatur on a beautiful day. The only thing that would improve this picture is a rampaging herd of mammoths, perhaps accompanied by a pack of dire wolves. (Photograph by Anthony Martin.)
As a “local boy done good,” I’ve been lucky enough to participate directly in the festival the past few years as an author and introducer of authors. In 2012, I was part of a panel discussion with authors Maryn McKenna and Dr. Holly Tucker about science authors using social media. In 2013, I was invited by the Atlanta Writers Club to present on my then-new book Life Traces of the Georgia Coast, and in another session introduced Brian Switek, there to talk about his book My Beloved Brontosaurus. Last year, I was delighted to be invited as one of the featured authors in the Science Track of the festival for my book Dinosaurs Without Bones.
With the planning of the 2015 Decatur Book Festival, and a new book in the works but nowhere near published, I figured my role in it this year would be as a spectator and probable book purchaser. So I was very pleased when festival organizers, in cooperation with the Atlanta Science Tavern, asked me to introduce one of the featured authors in the Science Track, Dr. Beth Shapiro, an invitation I readily accepted. Her new book, How to Clone a Mammoth: The Science of De-Extinction, promised to be one of the more exciting titles showcased in the Science Track. Of course, I was also happy that my trip to this event involved only a 15-minute walk from home.
To start prepare for introducing Dr. Shapiro at the festival, I bought her book and read it beforehand, cover-to-cover. I’m not going to review it here (that’s partially covered in my introduction anyway), but the following book trailer, narrated by Shapiro, succinctly tells its story while using nicely rendered watercolors to illustrate its main points.
This is how science-book trailers should be done: Short and simply told, using lots of pretty pictures, but injected with enough intrigue to make you want to learn more about the topic. The video is narrated by Beth Shapiro and the artwork by Peter Durand, and is available for free download from Vimeo at this link.
After reading Dr. Shapiro’s book, I started writing my introduction for her, using some of the main ideas posed in the book and some biographical information. Yet somehow I knew that to just do that could be really boring. I also knew that because this was a book festival and I was a book author, it would be totally appropriate for me to actually write something original and read it to this literary-loving audience. This was not the time to “wing it” with a stumbling, impromptu little speech that just said, “The book’s great, she’s great, get the book!”
So this is when I took a page (or two) out of my most recent book (Dinosaurs Without Bones) and created a scenario to draw in and involve the audience more directly. In Dinosaurs Without Bones, I open the book with a detailed description of dinosaurs interacting with one another and making traces (tracks, burrows, nests, and more) in a given hour back in the Cretaceous Period. This time, though, I imagined a re-booted Pleistocene megafauna cavorting in downtown Decatur immediately after Shapiro’s talk (described below), then followed it with laudatory comments about the book and its author. Once written, I edited the rough draft, edited it again, and a third time, then rehearsed and timed the introduction four times. I only had about 3 minutes, and the final version came out to 3:30 minutes: Close enough.
I figured her talk, scheduled for 1:15 p.m. Sunday (September 6) at the Marriott Conference Center in downtown Decatur, would be packed, and it was. By about 1:05 p.m., the room was already nearly filled, and by the time I started my introduction, about 400 people were in the room, with many standing in the back and on the sides. This turned out to be the best attended of all Science Track talks at the festival, which was not surprising considering the interesting subject, lots of advance press about her book, and Dr. Shapiro’s engaging presentation style.
A panorama of the crowd as Beth Shapiro (far right) sets up her laptop at the podium, just before my introduction. The few empty seats you see in this photo were filled within minutes. (Photo by Anthony Martin.)
I also met Dr. Shapiro for the first time about 10 minutes before my introduction, where we had a lively and fun exchange (including the coincidence that we had both attended the University of Georgia, albeit at separate times). We even had time to pose for a picture, taken by my wife, Ruth Schowalter.
Just in case you were confused, that’s me on the left, and Beth Shapiro on the right. (Photo by Ruth Schowalter.)
What’s charming about the Decatur Book Festival is that even the introducers are introduced, so I had to wait while the room captain (Anthony) read a brief biography about me, then I jumped up on stage for my introduction. All I’ll say is that it went very well, and I’m even more pleased to report that Shapiro’s talk was excellent, serving as a model for effective science communication.
Me on stage introducing Beth Shapiro (far right), with a large happy, enthusiastic crowd listening, and there for a science book. Did I already say how much I love the Decatur Book Festival? (Photo by Ruth Schowalter.)
My introduction follows in its entirety, and you’ll just have to think about how it would sound while reading it out loud, and with much dramatic emphasis.
Imagine exiting this building, but you have to pause for a moment because a herd of mammoths is strolling down Clairemont Road. On the Decatur town square, you move warily around a giant ground sloth tearing apart a Southern magnolia, and likewise give wide berth to several wooly rhinoceroses grazing by the gazebo. A pack of dire wolves dash by, chasing down a soon-to-be locally extinct coyote. However, you are amused when, in what looks like an act of vengeance, a giant bison crashes through the front door of Ted’s Montana Grill. Suddenly, a sunny day turns dark, and you look up to see a vast, dark cloud, from which a gentle rain falls. Only the “cloud” is composed of a billion passenger pigeons, and that’s not rain you’re feeling.
The animals just mentioned were all here, but separated from us by the geologically brief time of 11,000 years, or for passenger pigeons, only a hundred years. In Dr. Beth Shapiro’s brilliant new book, How To Clone a Mammoth: The Science of De-Extinction, she highlights our close temporal proximity to these extinct animals, while also exploring the feasibility of bringing them back alive, to the here and now.
Part lesson in the once-separate realms of genetics and paleontology, part wistful elegy to these recently departed animals, and all-good storytelling, How to Clone a Mammoth is a book that provokes weighty thoughts about improving our future by reliving the past. These animals or their proxies may be just what we need to repair environments devoid of long-gone keystone species. Forget Jurassic World with its super-sized mosasaurs, constipated dinosaurs, and improbable heels: We want “Pleistocene Park.” And our perfect guide for learning how to create that park is Dr. Shapiro.
As an Associate Professor of Ecology and Evolutionary Biology at the University of California-Santa Cruz, Dr. Shapiro studies de-extinction, a word that originated in science fiction, but thanks to her efforts and those of her colleagues, is now evolving into science fact. I also envy her UC-Santa Cruz students, who surely gain new and life-changing insights in her classes, benefiting directly from her field experiences in Siberia and laboratory expertise.
How to Clone a Mammoth is a provocative book, literally, as it provokes many questions. For instance, can we really clone a mammoth? How do we reconstruct their genome and those of other long-extinct animals? Once made, how does a “de-extincted” species become a self-sustaining population? How does this population fit into a modern community of microbes, plants, and animals? And, most importantly of all, should we try to bring back extinct animals, even those that only recently departed this earth? In other words, when creating a “Pleistocene Park,” will we make something more akin to Stephen King’s Pet Cemetery?
To answer all of those questions and more, we are very lucky to have Dr. Shapiro here today to talk about her book, How to Clone a Mammoth: The Science of De-Extinction. Please join me in welcoming Dr. Beth Shapiro.
So if you were there at the Decatur Book Festival, I hope you enjoyed it, and especially the Science Track. Oh, and by the way, y’all really need to get (and read) Beth Shapiro’s book, How to Clone a Mammoth: The Science of De-Extinction (2015, Princeton University Press).
My copy of the book, personally autographed by Beth Shapiro. No, I’m not going to sell it to you: Get your own copy. (Photo by Anthony Martin.)
As a paleontologist and geologist, time is always on my mind. Nonetheless, such musings do not always connect with millions or billions of years, the so-called “deep time” that earth scientists love to use whenever shocking people who normally ponder shorter time intervals used when, say, measuring the life of a fruit fly, or the length of a cat-themed video.
Still, sometimes other paleontologists and I also try to interpret brief time spans, such as a few minutes, hours, or years, but ones that elapsed millions of years ago. This is where ichnology comes in handy as a tool, as animal traces in particular – such as tracks or burrows – can give “snapshots” of animal behavior in the context of their original ecosystems. For instance, when I look at a limestone layer that was first laid down 95 million years ago and see burrows in that limestone, I think of it as soft, carbonate-laden mud with many small crustaceans digging into it. This is an instance of where imagination becomes a time machine, helping us to create evidence-based explanations that hopefully can be later honed with further scrutiny and re-imagining. When trace fossils are preserved as an assemblage in the sediments of that past ecosystem, whether it was a soil, lake bottom, or beach, the stories can be told in chronological order.
Throw plants into the mix, though, and they can screw up those linear-time stories to the point where you doubt every earth scientist when they tell a story about an ancient land-based ecosystem. Plants can occupy sediments that are hundreds, thousands, or millions of years old, and if their roots penetrate deep enough into these sediments, they may leave both remnants of their tissues and root traces. These geologically fresh root traces then mix with older animal trace fossils, conjuring the illusion of a contemporaneous community, all living happily together. Only a careful examination of the sediment, and which traces cut across which, would help to unravel the real story.
In the preceding video – taken more than four years ago on Sapelo Island on the Georgia coast – I tell such a cautionary tale of what happens when you assume that the animal and plant traces in an old sediment were made at the same time. (Spoiler alert: You would be wrong.)
For more about this relict marsh and the fascinating lessons we can learn from it, please read Fossils In Progress (which includes a short bibliography) and Teaching on an Old Friend, Sapelo Island. Both posts also discuss how to teach students some of these concepts of interpreting fossilization, paleoecology, and geologic time when in the field.
All scientists use tools when investigating how the natural world works. Yet as a traditionally trained field scientist – and an ichnologist – I’ve always been wary of adopting anything more complicated than field notebooks, pencils, tape measures, hand lenses, and cameras. Granted, I did add GPS units to my equipment list starting about 12 years ago and now consider these location-finding devices as standard (and essential) field gear. Still, if you told me even a year ago that I would happily welcome the services of flying robots while tracking alligators on the Georgia barrier islands, I would have smiled and said, “Yes, and Bud Light is my favorite beer.” (Just to clarify: It is not, nor will it ever be.)
Need a better overhead view of barrier-island ecosystems with identified locations, and don’t feel like waiting for the latest satellite photos? I suggest strapping a camera and GPS unit onto a vulture and training it to take pictures while simultaneously recording waypoints. Or, have an aerial drone do the same for you, which will do a much better job, while also not annoying the vulture. (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
So here I am, ready to buy everyone a round of their favorite beverage (perhaps Kool-Aid) in celebration of my being wrong. Earlier this year, an Emory colleague of mine – Michael Page – convinced me that an aerial drone might be a good tool for getting overhead views of ecosystems on the Georgia barrier islands. So as soon as Emory purchased a new, state-of-the-art drone in early 2015, Michael and I plotted to take it to St. Catherines Island for its first real field test in March 2015.
Yeah, I know, it’s not New Horizons, but this drone is still a pretty nifty piece of field equipment, and I’m glad to have added it to my ichnology utility belt. (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
The last time Michael and I were on St. Catherines Island together was two years ago, when we had a group of Emory students help us map gopher tortoise burrows and alligator dens there. (That was fun.) We’ve also been working with a few other colleagues at Georgia Southern University to describe the gopher tortoise burrows and alligator dens on St. Catherines Island over the past few years. So Michael and I figured we could use the drone to aid in this research, starting with the gopher-tortoise burrows.
Perhaps the most persuasive point Michael made about the drone’s potential value was its winning combination of built-in GPS and high-definition video camera. This meant we could instantly map (“georeference”) gopher-tortoise trails between their burrows, as well as the burrows themselves. The latter were easily visible from the wide, white, sandy aprons just outside burrows entrances, and sometimes even show up in satellite photos of the area. The big difference with using a drone versus satellite photos, though, would be in their ‘real-time” capture of these traces – rather than a randomly taken satellite image – while also having much better resolution.
See that hole in the ground? That’s a gopher-tortoise burrow. See those breaks in the grass to the left and right in the foreground, and elsewhere? Those might be trails that connect this burrow to others in the area. How to map all of them? Call in the drone! (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
Can you see gopher tortoise traces from space? Surprisingly, yes. Not only are burrow aprons visible in this GoogleEarth™ photo (denoted by the arrows), but also trails connecting some of the burrows. Although if you find yourself squinting and turning your head sideways to see these, you’ll understand why sending up a drone with a high-resolution camera might be a better way to map these traces. (Image taken from a presentation I gave at the 2011 annual meeting of the Geological Society of America in Minneapolis, Minnesota.)
Most of the gopher-tortoise burrows are in a broad, flat area on St. Catherines that used to be pasture land, but is now being restored to the tortoises’ long-leaf pine-wiregrass ecosystem. This re-located tortoise population has done quite well here, and because of its isolation on St. Catherines, it’s an example of one that does not face as many human-related problems as their compatriots on the Georgia mainland. Its remote location also helped us with trying out the drone, as we didn’t have to worry about it dodging buildings, power lines, or gawking locals, all of which might have complicated its flights.
Almost ready for take-off! Drone pilots/wranglers Alison Hight (left) and Michael Page (right) look for a flat place near a staked gopher-tortoise burrow for setting down our “eyes in the sky.” (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
This was the drone’s maiden voyage on St. Catherines Island, taking off from the gopher-tortoise field. It did just fine. (Video footage by Anthony Martin, taken on St. Catherines Island, Georgia.)
The drone pilots doing a great job, sending the drone around the gopher-tortoise field for a spin. (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
This flight was a big success, in that the drone went up, took lots of video and photos while in the air – all of which was georeferenced – and it came down without crashing. So we decided to try it elsewhere. That’s when we remembered the Atlantic Ocean was only about 500 meters away on the eastern edge of St. Catherines, with a lengthy beach, salt marshes, storm-washover fans, tidal creeks, and a bluff of Pleistocene sand with maritime forest on top of it. So off we went, and we did Flight #2 over the storm-washover fans, salt marshes, and tidal creeks near the north end of the island.
Drones (much like me) operate well in places with wide-open spaces that involve Georgia beaches. Check out how quickly it disappears from view once in the air. (Video footage by Anthony Martin, taken on St. Catherines Island, Georgia.)
Following this flight, we decided to send the drone father north to survey the bluff from just offshore. This was probably the most exciting flight, as we watched it go out to sea, then fly parallel to the shore, with its camera trained on the coastline.
Michael setting down the drone on a almost-flat surface as Alison prepares it for take-off. The yellow yardstick serves as an easily visible scale that can be used to estimate ground-level distances. (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
Off we go, into the wild blue yonder. (Video footage by Anthony Martin, taken on St. Catherines Island, Georgia.)
Bringing it back home. Look for the spot near the top-center of the photo for our “hand lens in the sky.” (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
Coming in for a soft landing, which is much preferred over the other type of landing. (Video footage by Anthony Martin, taken on St. Catherines Island, Georgia.)
So following these inland and coastal successes, which clearly were applicable to studying gopher tortoises and coastal geology, it was time to try using the drone to look at the apex predators of the island – alligators – and their traces. The next day,while scouting areas further to the south for alligator dens and tracks, we paused on a causeway cutting through a salt marsh. Because the marsh was at low tide, its mudflats were exposed, which allowed a few big animals to walk across it and leave their tracks, and for us to see these tracks.
At least two of the trackways were from alligators, made distinctive by their sinuous tail drags, arcing footprints, and belly drags. I suspect the other trackways were from feral hogs, but I couldn’t tell for sure because they were in squishy mud beyond my carrying capacity. Which is to say, I would have quickly immersed myself in this environment had I gone any further out. Gee, if only we had some way to photograph those trackways from above, better helping us to see their lengths, patterns, and directions.
A salt-marsh mudflat at low tide, with low marsh and a patch of forest (hammock) in the background. See the alligator trackway to the left, where the alligator turned? Look in the middle and you’ll see two more trackways that are probably from feral hogs, and another curving trackway to the right that is from another alligator. (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
Why wade into waist-deep salt-marsh mud to track an alligator when you can stay safely (and cleanly) on dry land, telling a drone what to do? (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
So it was time for another flight, and the drone’s first alligator-track-mapping mission, which I’m pleased to say was a success. One example of that success is conveyed by the following photo, which made me gasp when I first saw it. There were the two alligator trackways and the two hog trackways, but also two not-so-clear trackways I had missed and a clear view of where the hogs had dug along the marsh edge. This photo similarly evoked a collective “Ooooo!” when I showed it to an audience the next week at the Southeastern Section meeting of the Geological Society of America meeting in Chattanooga, Tennessee. My talk was a progress report on the alligator dens of St. Catherines Island, but I threw in this photo toward the end of it to show how drones might help with some of our tracking alligator movements through difficult-to-access environments on the island.
OK, you’re probably wondering by now how good those photos and videos taken by the drone might be, and whether or not any useful science can come from them. See that guy in the lower center of the photo? That’s me, pointing to each of the two alligator trackways, with the yellow yardstick providing an additional scale to the left. Notice also the probable feral hog trackways in the middle and fainter ones to the right, as well as the “hogturbation” (rooting disturbance caused by hogs) in the upper left of the photo. As an ichnologist, I was pretty darned pleased by this picture, and I want more like it. (Photograph by The Aerial Drone, taken on St. Catherines Island, Georgia.)
Lastly, I was also happy to see that drones have their own ichnology, in that they make flight traces. I’ve been long fascinated by flight traces – called volichnia by ichnologists – and have done my best to describe these in modern birds of the Georgia coast, as well as bird flight traces in the fossil record. Given the right substrate, anatomy, and behavior, the take-off and landing traces of birds and other flighted animals can preserve well enough for us to interpret them for their true nature.
Now, to do the same for a drone requires knowing how they have vertical take-offs and landings, using rapidly moving rotors. This means air will be pushed down onto the substrate directly underneath the drone, then dissipated abruptly outside that zone. The result would be a sem-circular depression slightly more that the maximum width of the drone, and one that would look very much the same whether made by a take-off or landing. The difference would be in the timing of the landing-pad traces: if obscured by the depression, then it was taking off, but if they are impressed on the depression, then it was landing.
Drone coming in for a landing, already pushing aside pine needles on the forest floor and making its landing trace. (Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
Drone landing trace, minus the drone. Do you see the square pattern in the middle of the oval depression? That’s the outline of the drone, defined by its landing gear.(Photograph by Anthony Martin, taken on St. Catherines Island, Georgia.)
So now we know that a drone can be used for conservation biology, coastal geology, behavioral ecology, and – most importantly – ichnology. How about art? Yes indeed. Once we got back to the Emory campus, Michael handed over the footage to Steve Bransford, a skilled videographer employed by Emory and founder of Terminus Films. Given all of the drone footage, he snipped out the boring parts (always a good thing to do), added a few maps at the start to orient the viewers, put in a soothing soundtrack, and basically created an aesthetically pleasing and extraordinarily educational video. So we submitted it for consideration as an video in the peer-reviewed online journal Southern Spaces, which was founded at Emory University. Much like an aerial drone on an unobstructed coastline, it sailed through peer review and is now available for viewing by all who have an Internet connection.
What’s aerial adventures await us next? We’ll see, as we have plenty of visual information and data to process from our previous visit. But for now we can be pleased to have shown the value of an aerial drone as both a scientific instrument and a means for engaging our senses with soaring imaginations.
Acknowledgements: Many thanks to the St. Catherines Island Foundation for its support of our research on St. Catherines, and to Royce Hayes and Michael Halstead for their assistance on field logistics. We also appreciate the expert piloting of the drone by Alison Hight while on St. Catherines. Steve Bransford did a fantastic job with creating the video for the Southern Spaces article, which should win the Georgia equivalent of an Oscar. Input from the editor of Southern Spaces, Allen Tullos, improved our article accompanying the video, and we are grateful to the staff of Southern Spaces for their quality service in putting this video and article online. And as always, many thanks to Ruth Schowalter for her help and support, in and out of the field.
